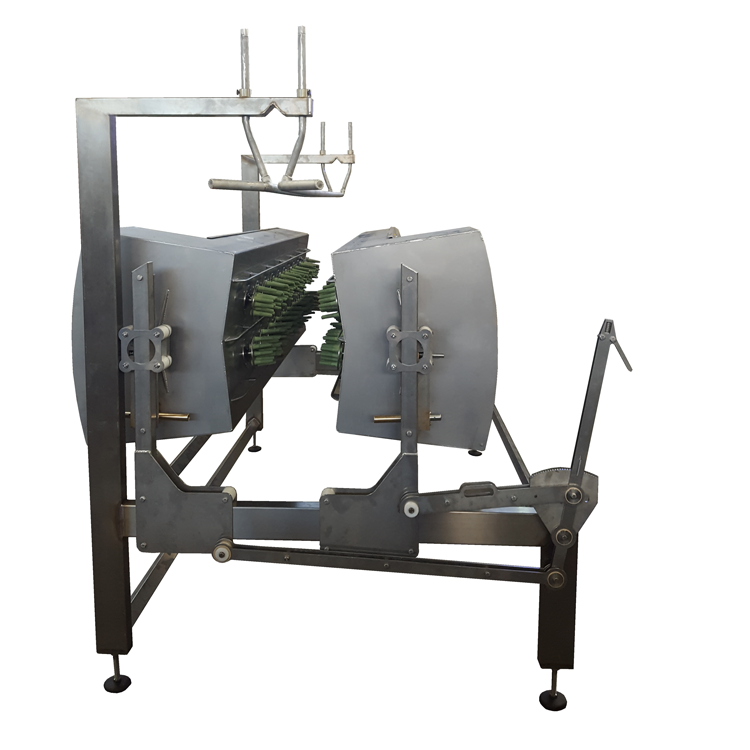

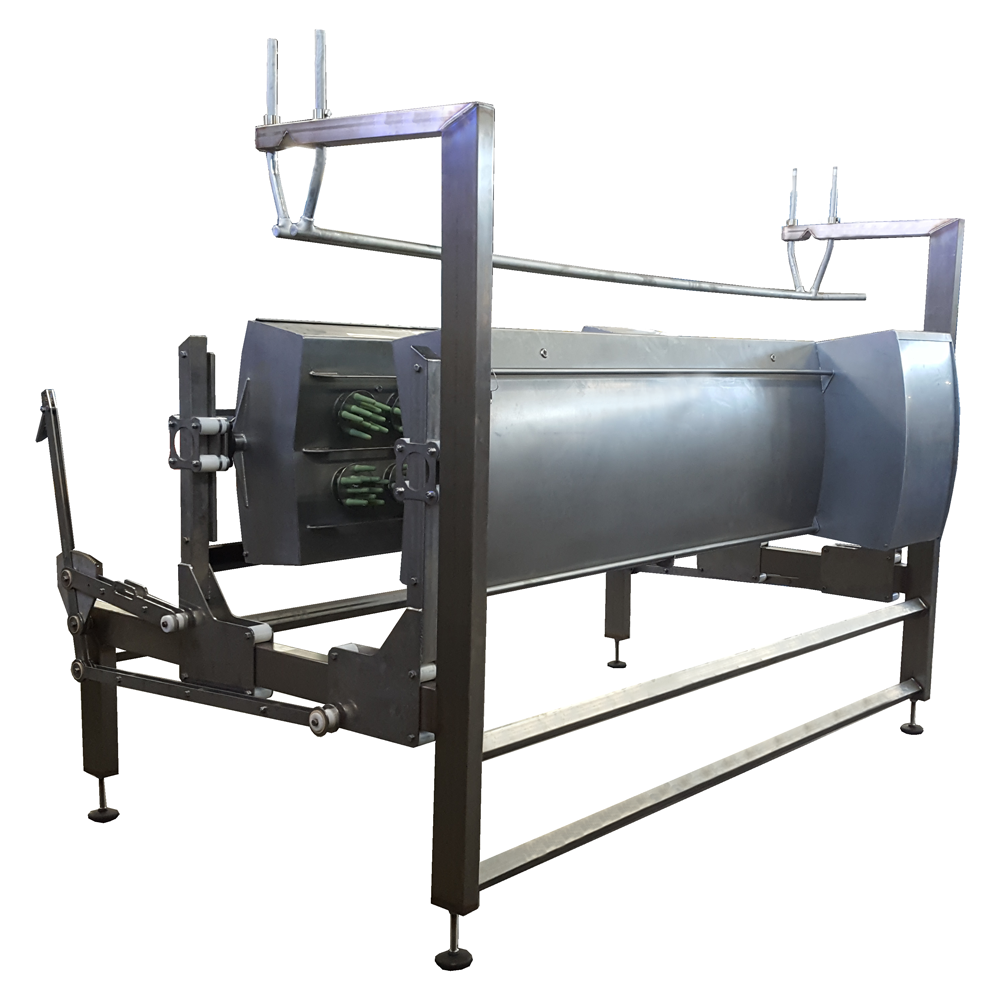

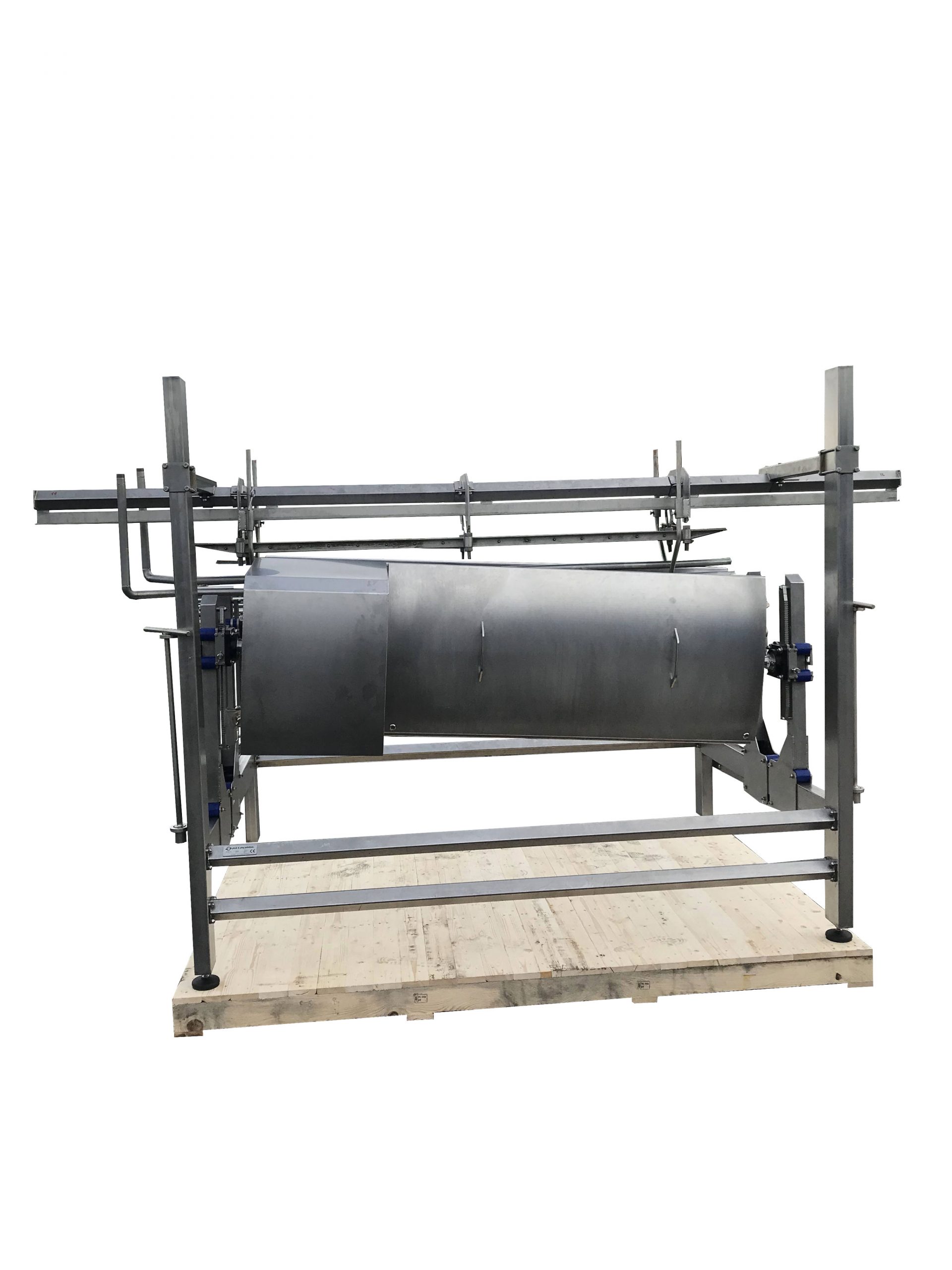

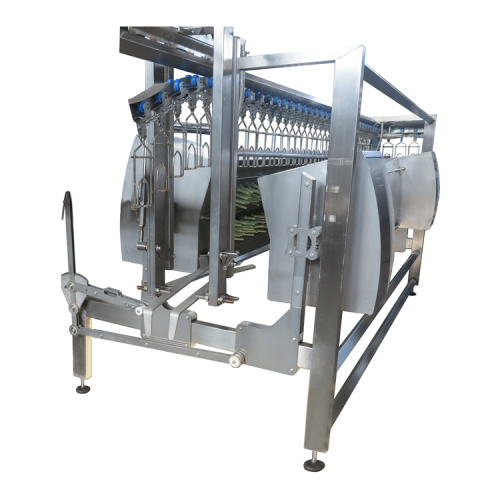

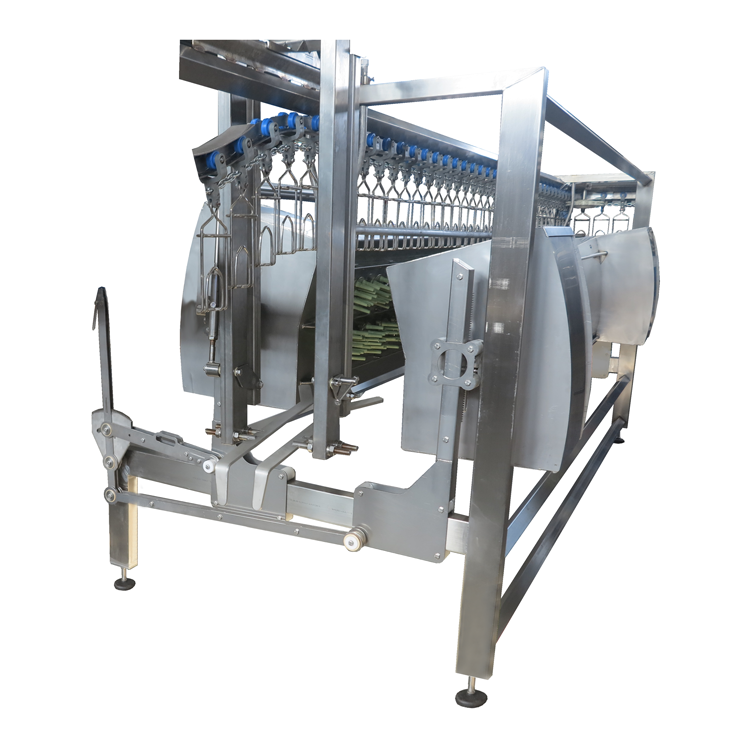

The defeathering machine is designed to remove feathers from poultry carcasses
-

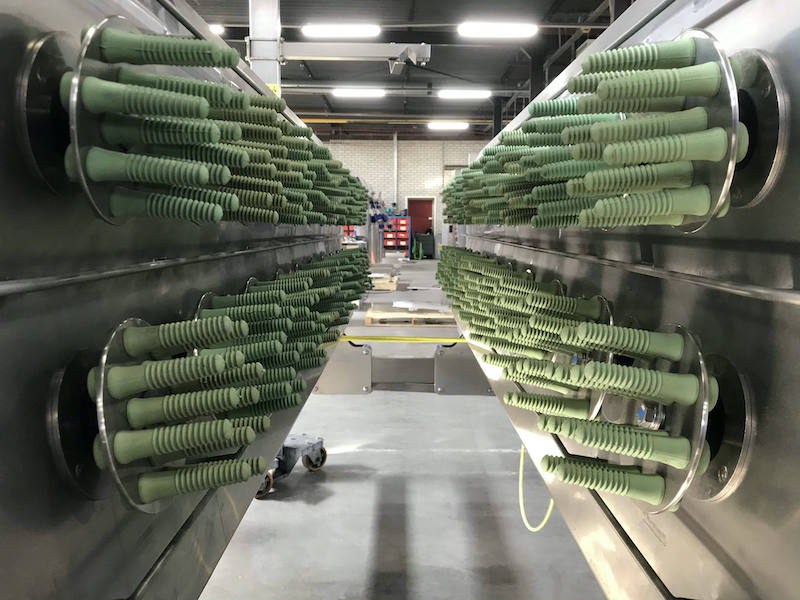

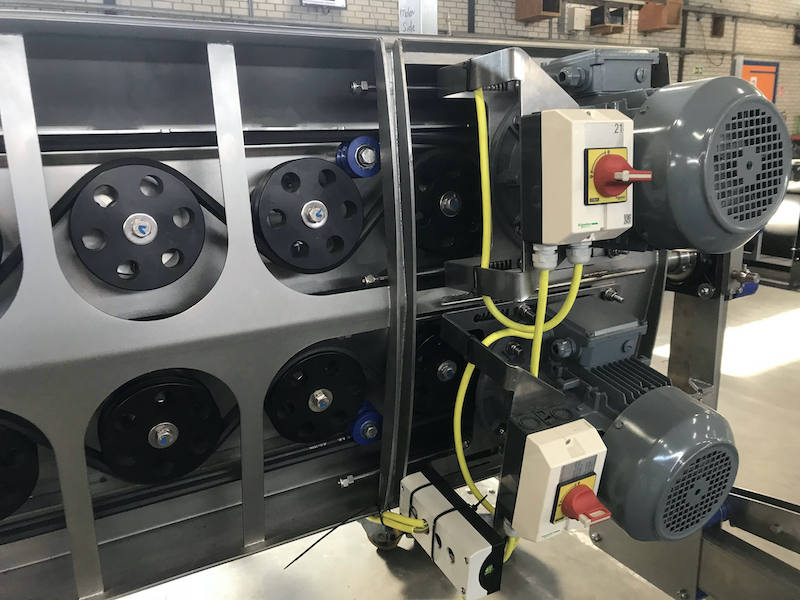

The machine consists of two plucking cabinets which contain V-belt-driven stainless steel rotating discs holding rubber picking fingers
-

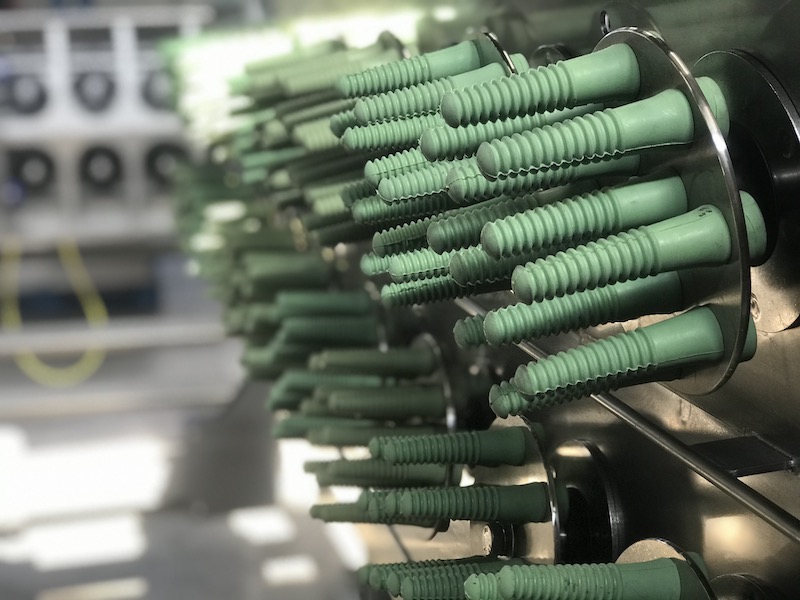

The picking fingers rub the feathers off the carcass
-
Various plucker models are available to accomodate for desired capacity per hour
-
Each plucker has two plucker cabinets with two rows of plucking discs
-
Each cabinet can be opened for easy cleaning and maintenance
-
Easy height and width adjustment
-
Made out of stainless steel and other non-corrosive materials

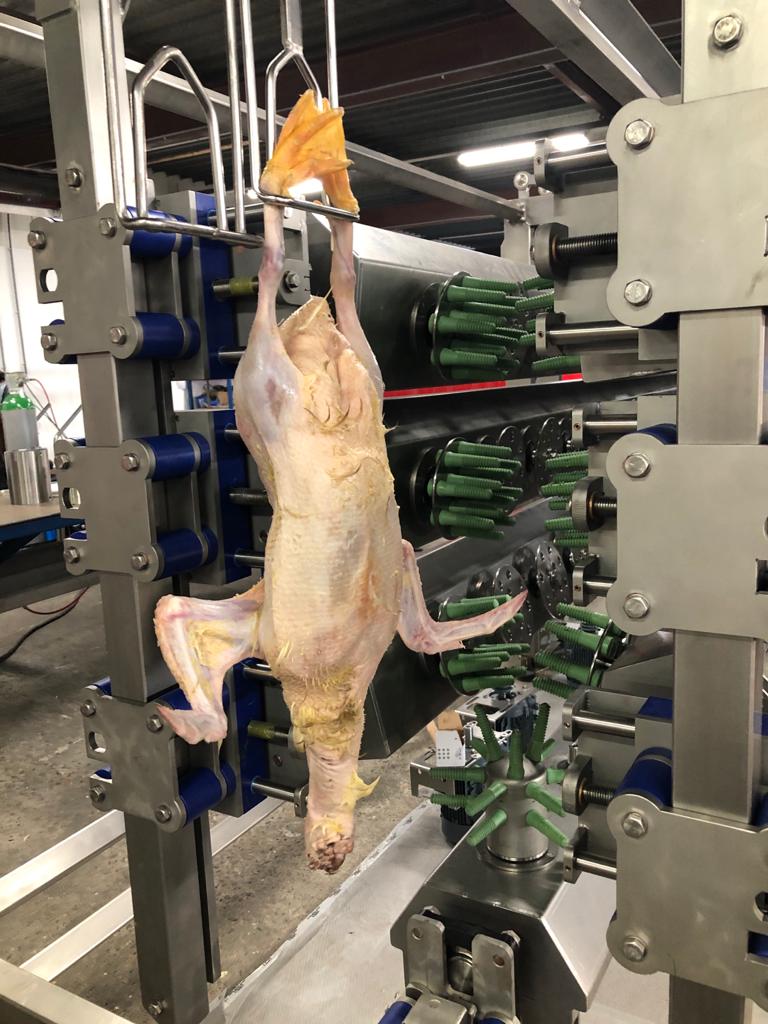

Our laterst type of plucking machine has individually adjustable picking banks which is suitable for plucking broilers, layers breeders and ducks. The plucking machine can be supplied with a bottom bank as well.
Each bank is easy to adjust (angle, width en height), easy to clean and easy to maintain through simplicity of design and based on our Pluck&Play concept, modular built and floor-mounted.

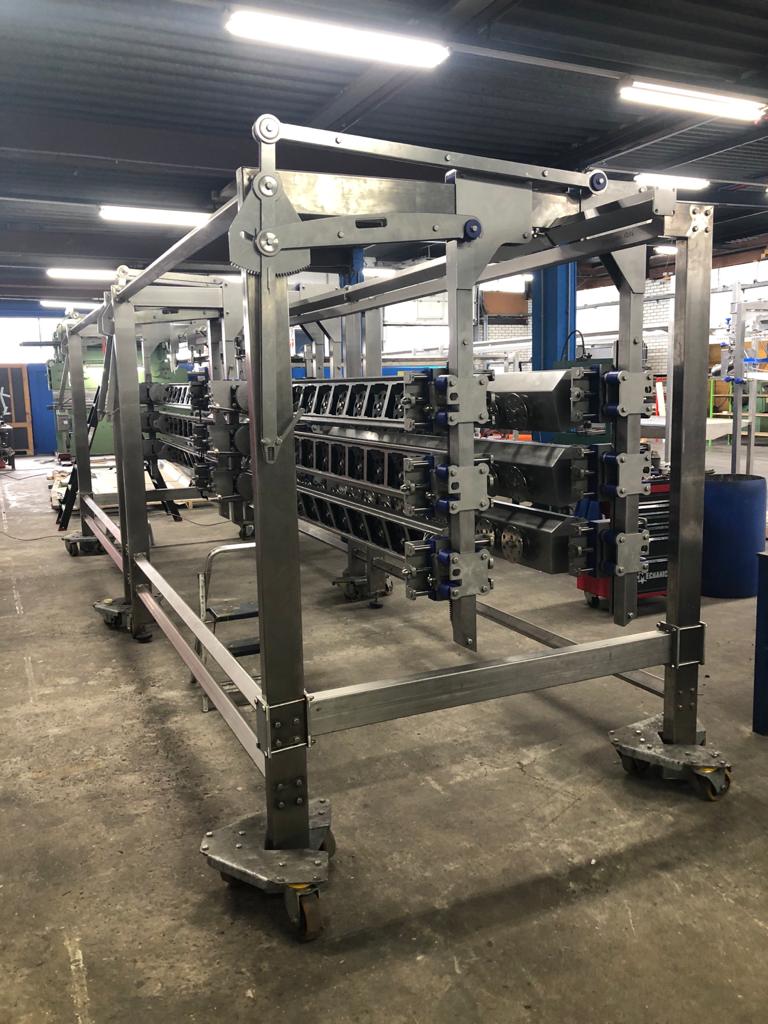

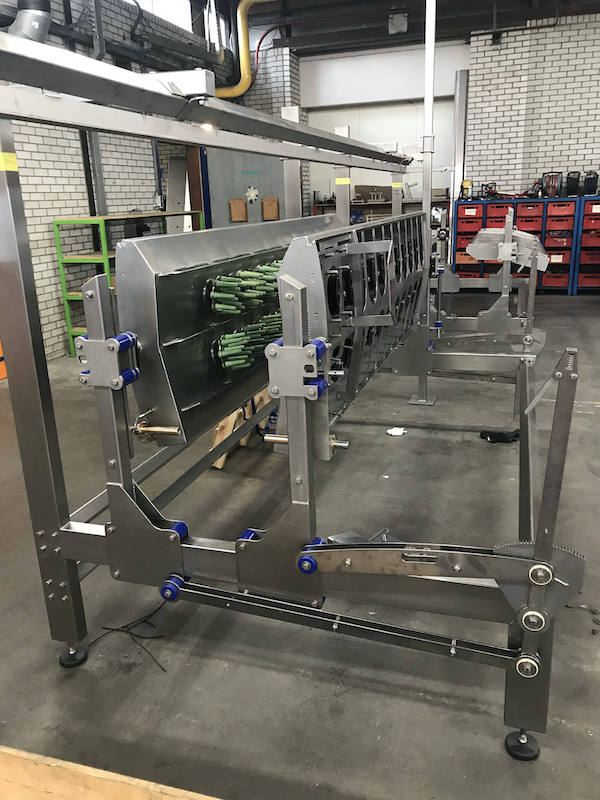

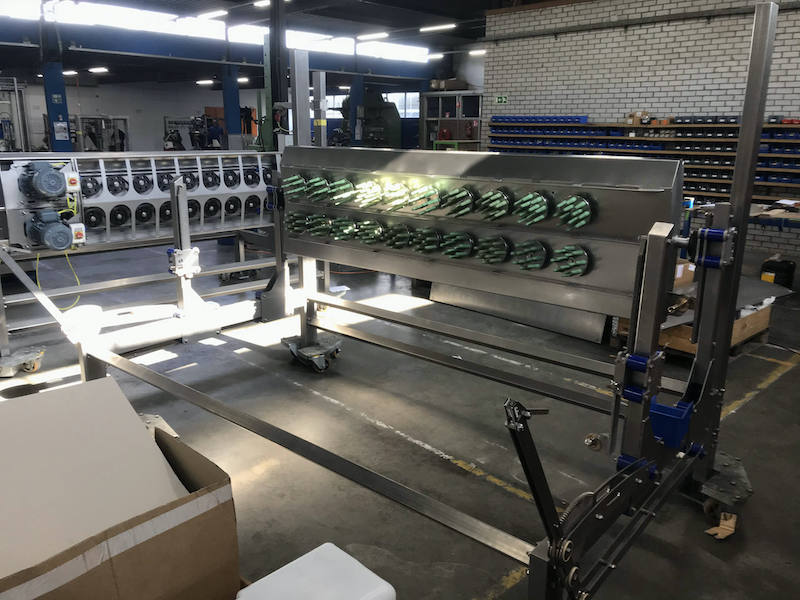

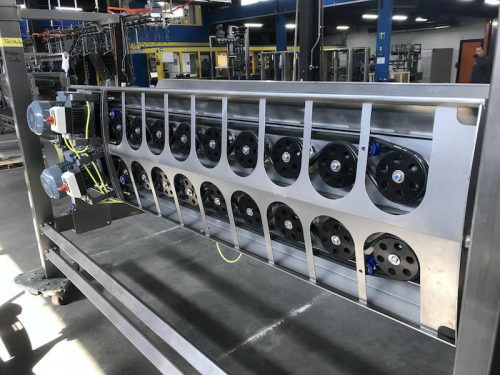

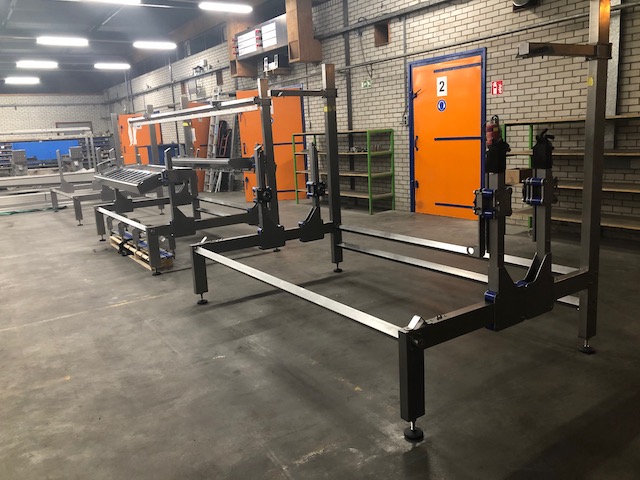

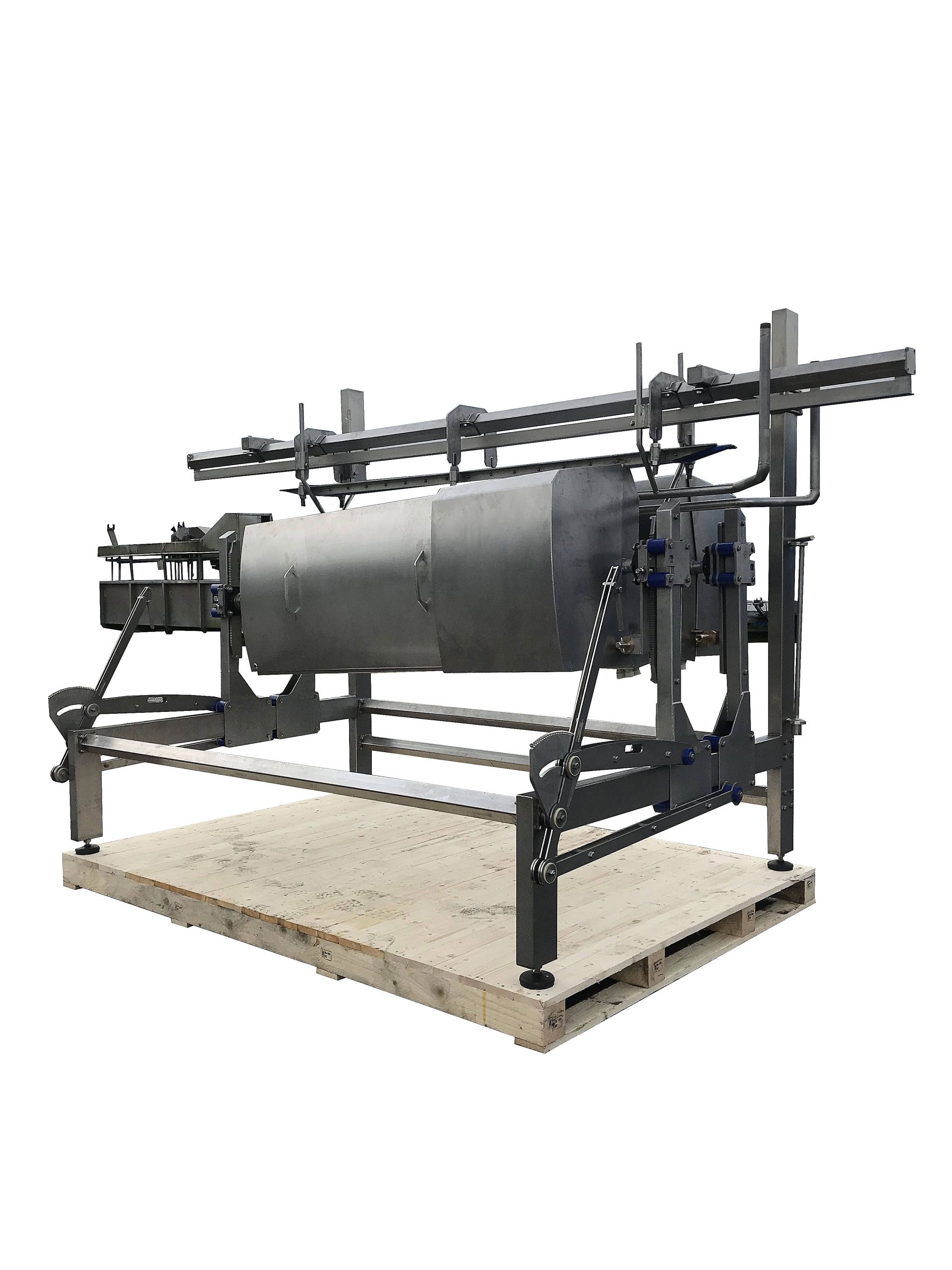

Modular built, floor mounted:

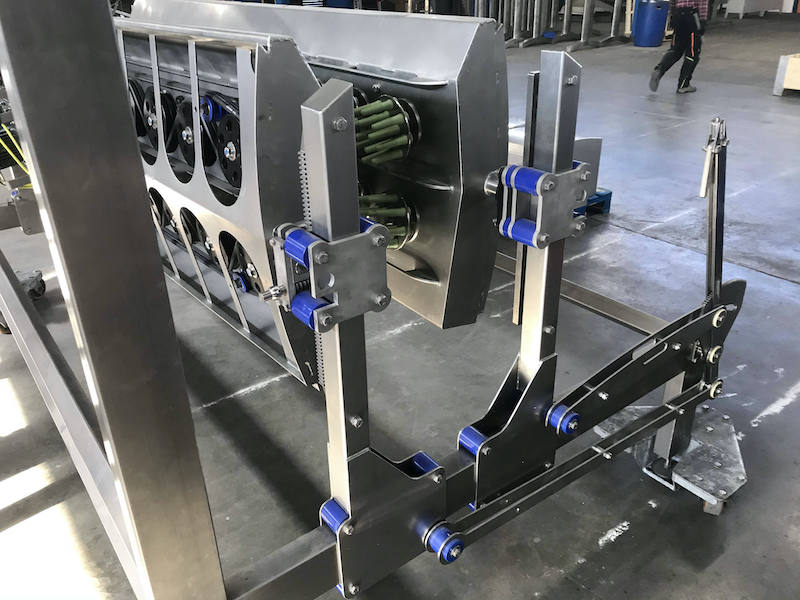

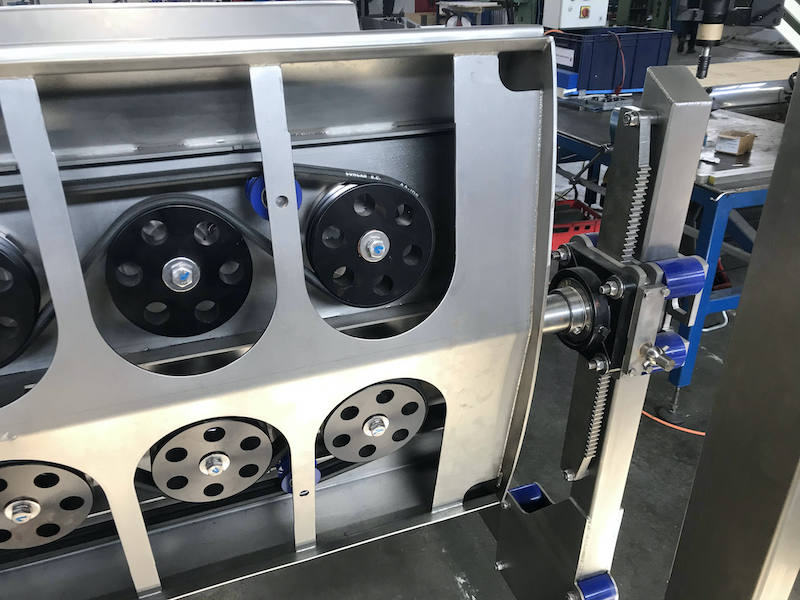

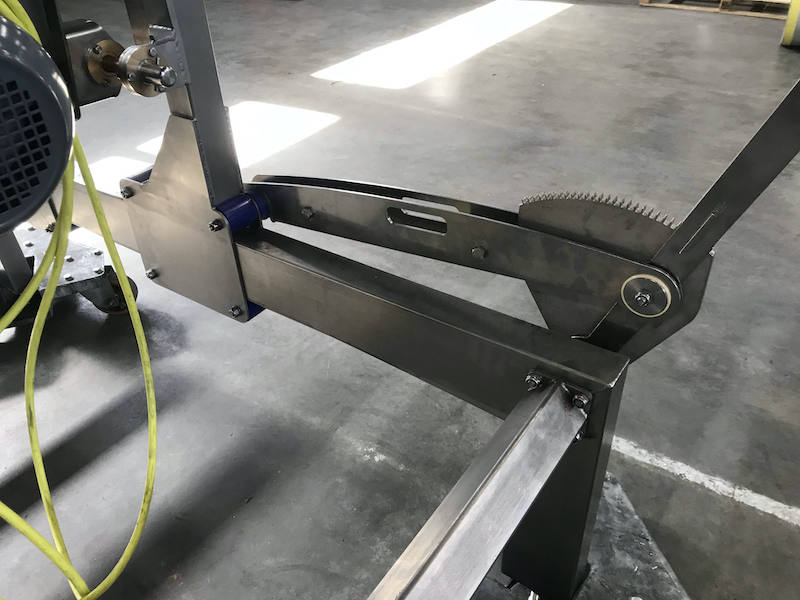

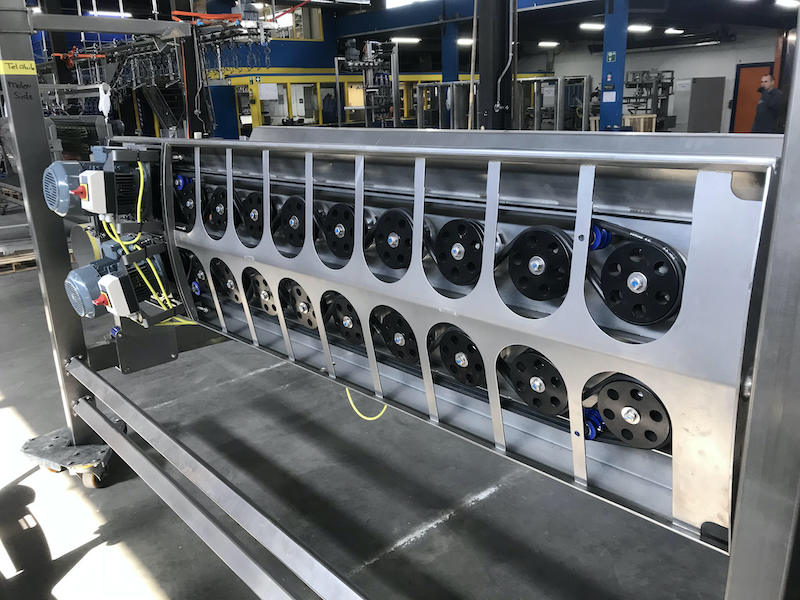

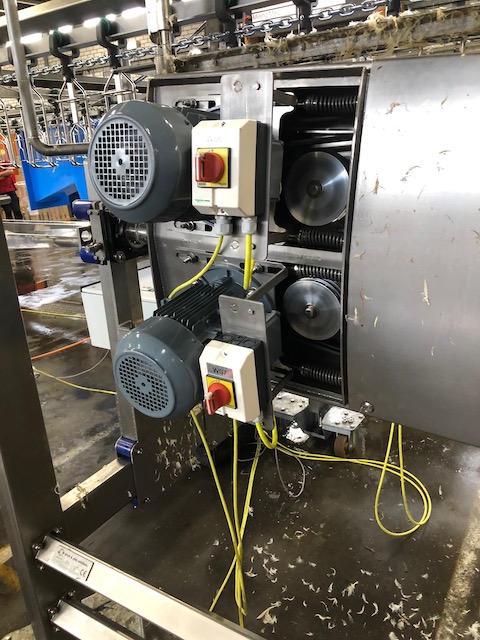

Easy plucker bank adjustment, easy to acces during maintenance and cleaning:

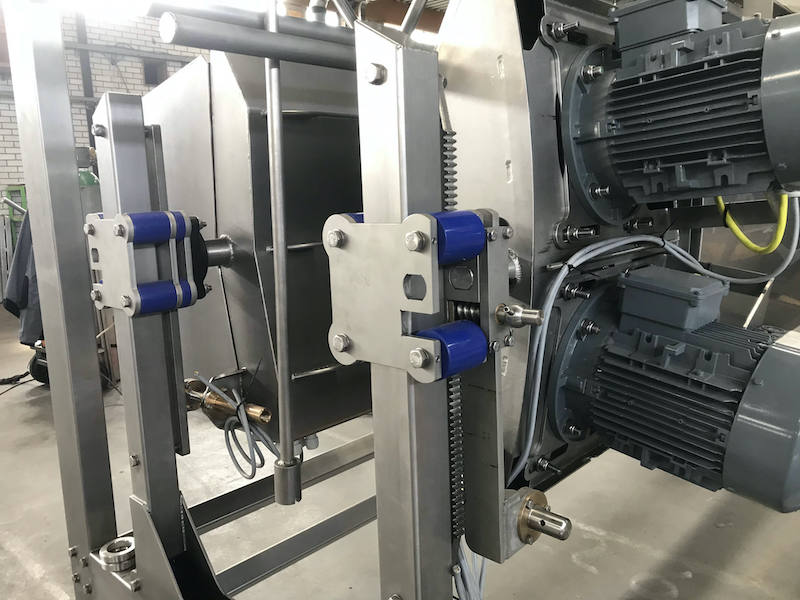

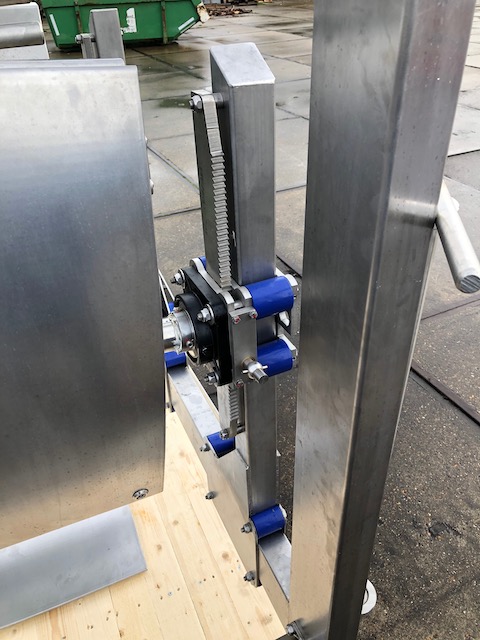

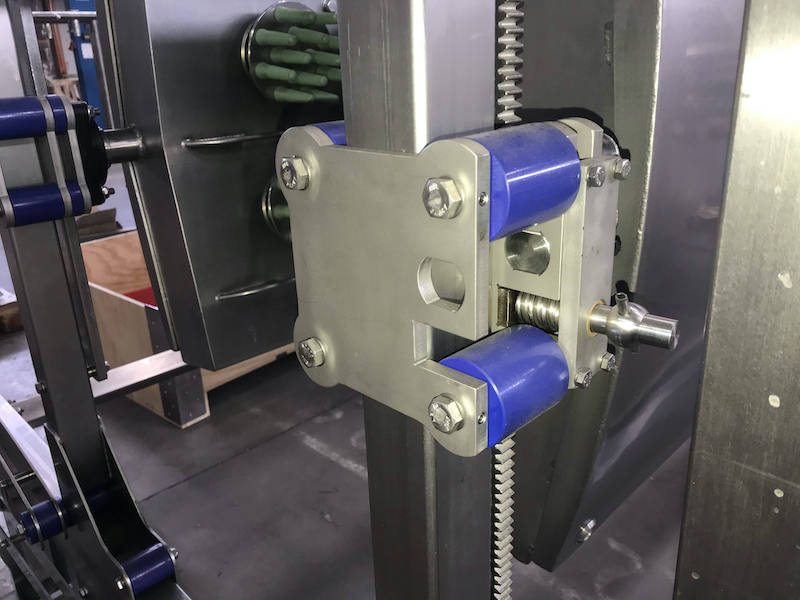

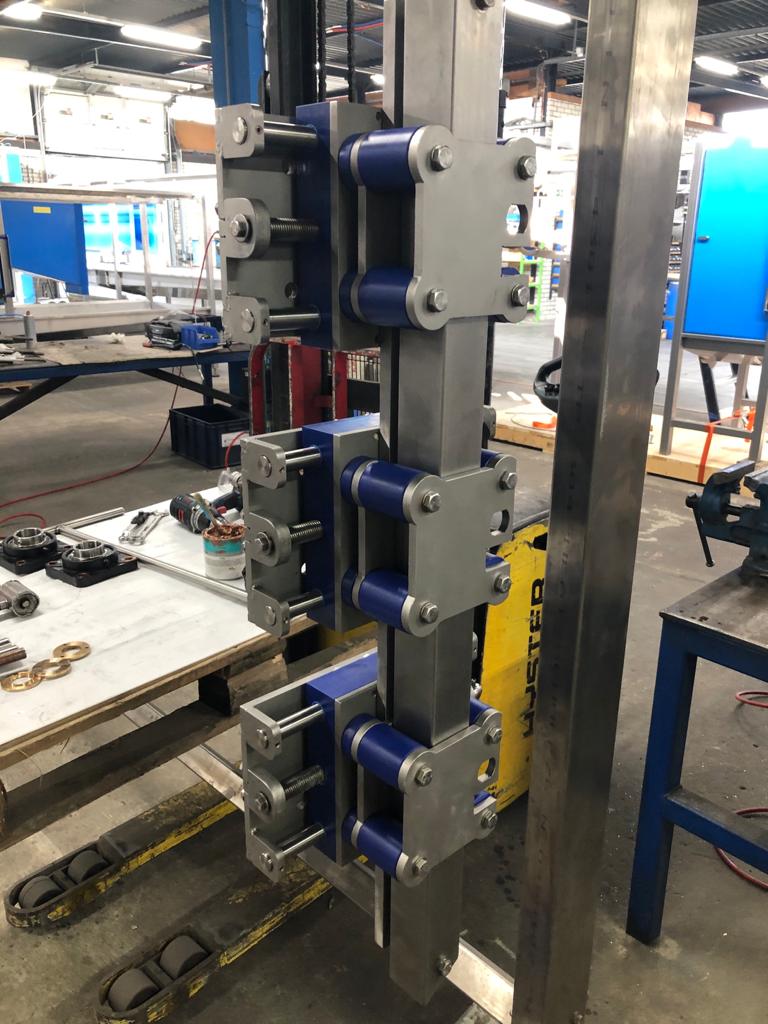

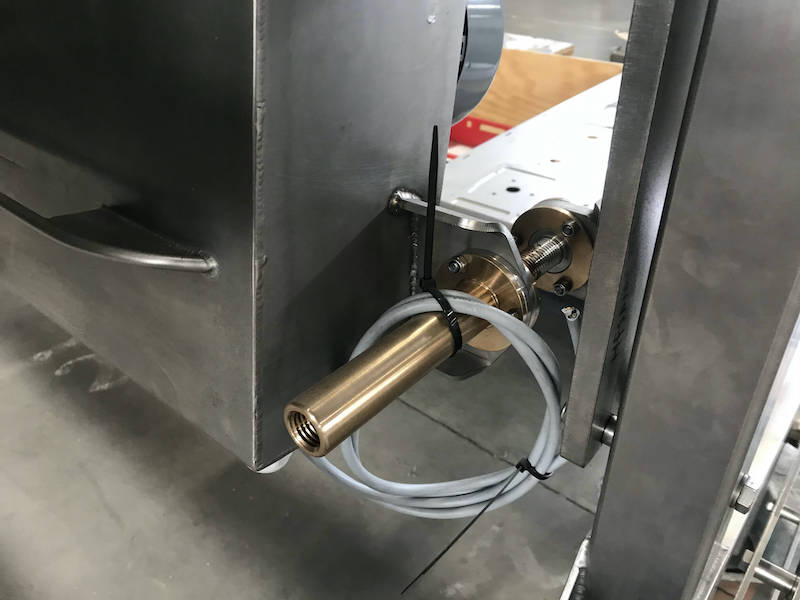

Easy height adjustment to adjust the height per beam on your bird:
| Plucking discs | 32 |
| Fingers per disc | 12 |
| Total number of fingers | 384 |
| Effective plucking length | 1600 mm |
| Capacity (soft scald) | 1000 birds per hour |
| Capacity (hard scald) | 1500 birds per hour |
| Length | 2700 mm |
| Width | 1805 mm |
| Height | 2255 mm |
| Weight | 1300 mm |
| Number of motors | 4 |
| Installed power per motor | 3.0 kW |
| Total installed power | 12.0 kW |
| Water connection | 1/2” BSP |
| Water consumption | 0.3 0.5 m3/h |
| Plucking discs | 40 |
| Fingers per disc | 12 |
| Total numbers of fingers | 480 |
| Effective plucking length | 2000 mm |
| Capacity (soft scald) | 1200 birds per hour |
| Capacity (hard scald) | 2000 birds per hour |
| Length | 3120 mm |
| Width | 1805 mm |
| Height | 2255 mm |
| Weight | 1450 kg |
| Number of motors | 4 |
| Installed power per motor | 3.0 kW |
| Total installed power | 12.0 kW |
| Water connection | 1/2" BSP |
| Water consumption | 0.45 - 2 m3/h |
| Plucking discs | 64 |
| Fingers per disc | 12 |
| Total number of fingers | 640 |
| Effective plucking length | 3200 mm |
| Capacity (soft scald) | 2400 mm |
| Capacity (hard scald) | 3600 mm |
| Length | 4885 mm |
| Width | 1805 mm |
| Height | 2255 mm |
| Weight | 1650 kg |
| Number of motors | 8 |
| Installed power per motor | 3.0 kW |
| Total installed power | 24.0 kW |
| Water connection | 1/2" BSP |
| Water consumption | 0.6 - 3 m3/h |
