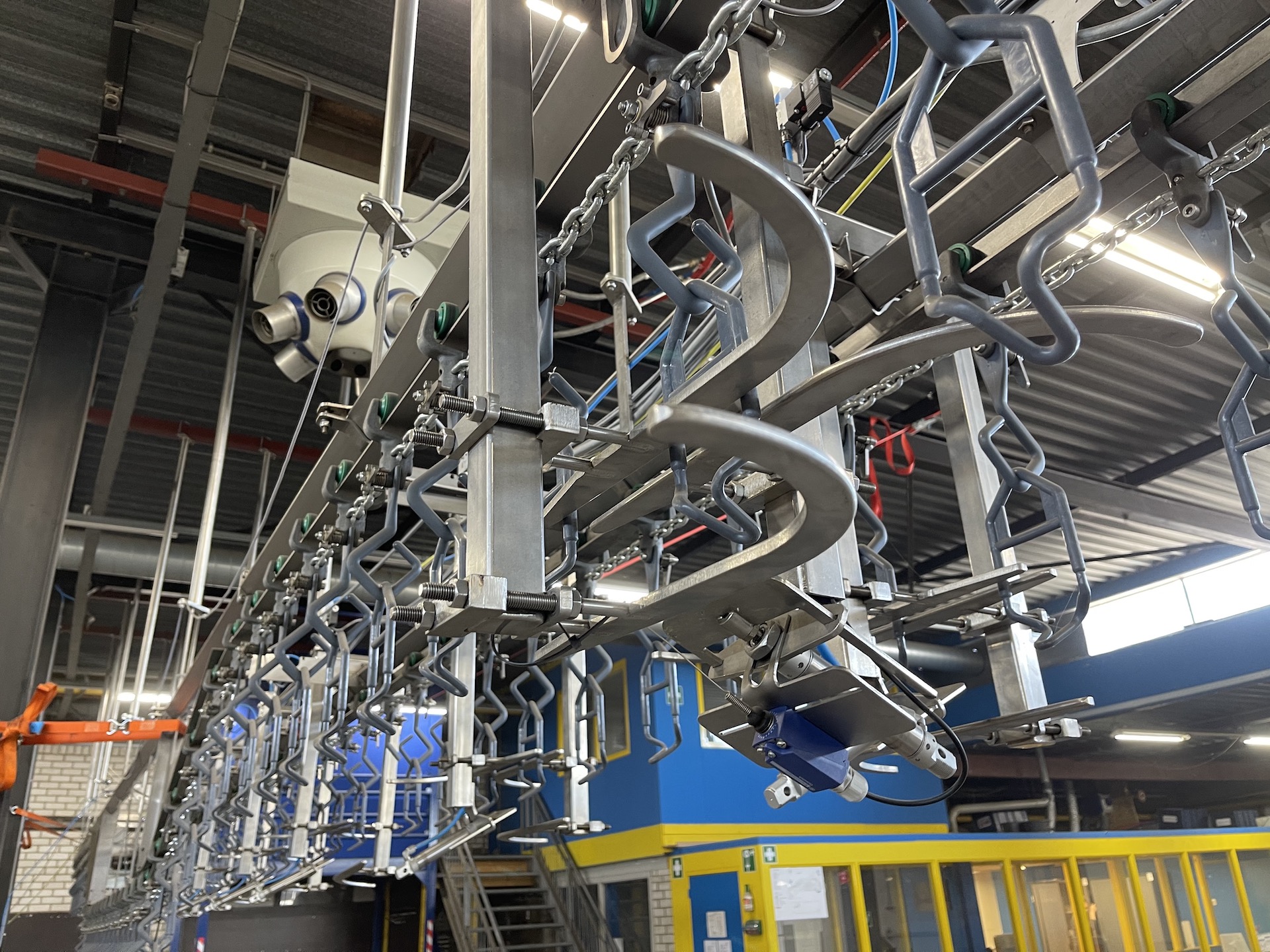

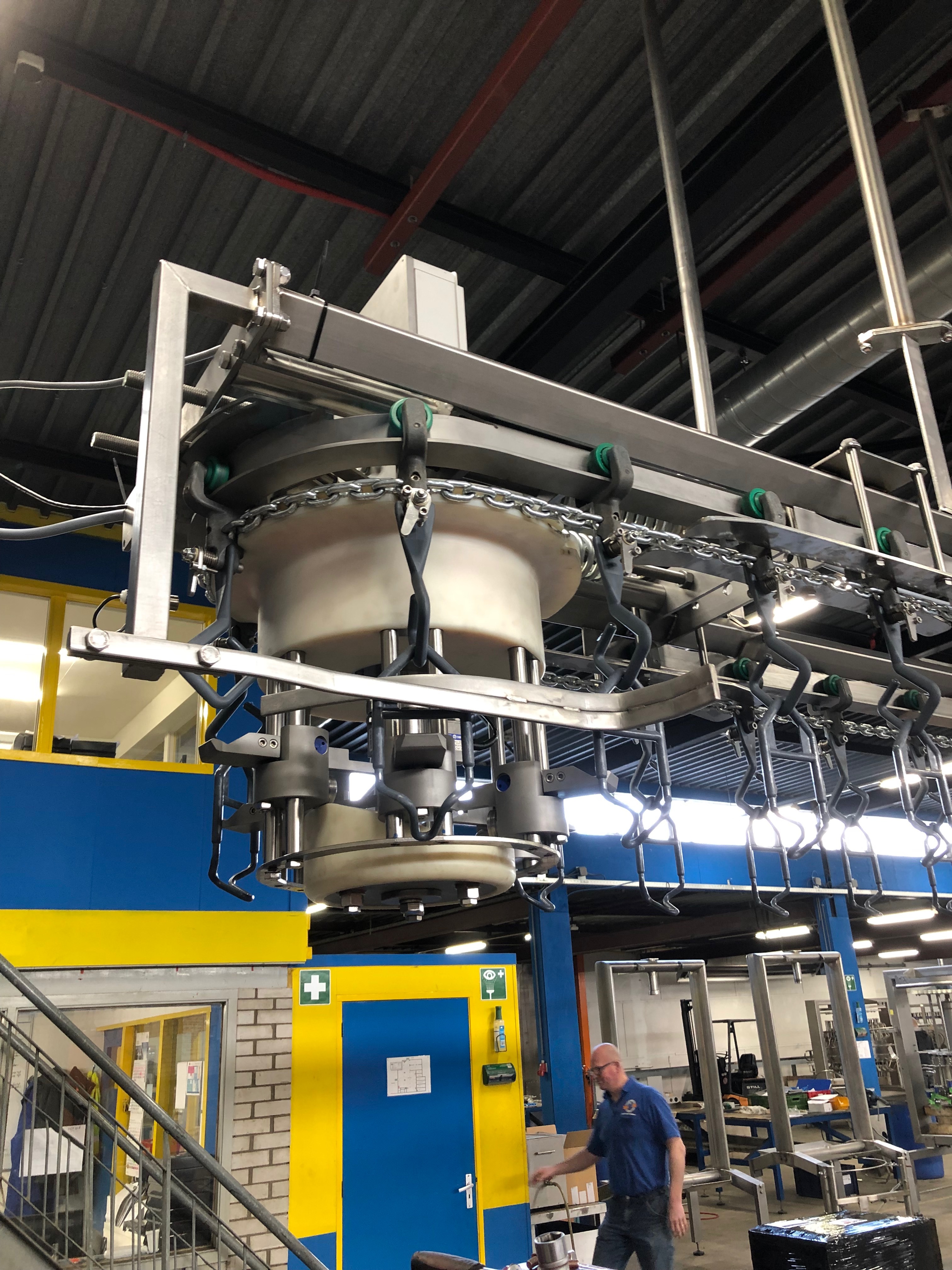

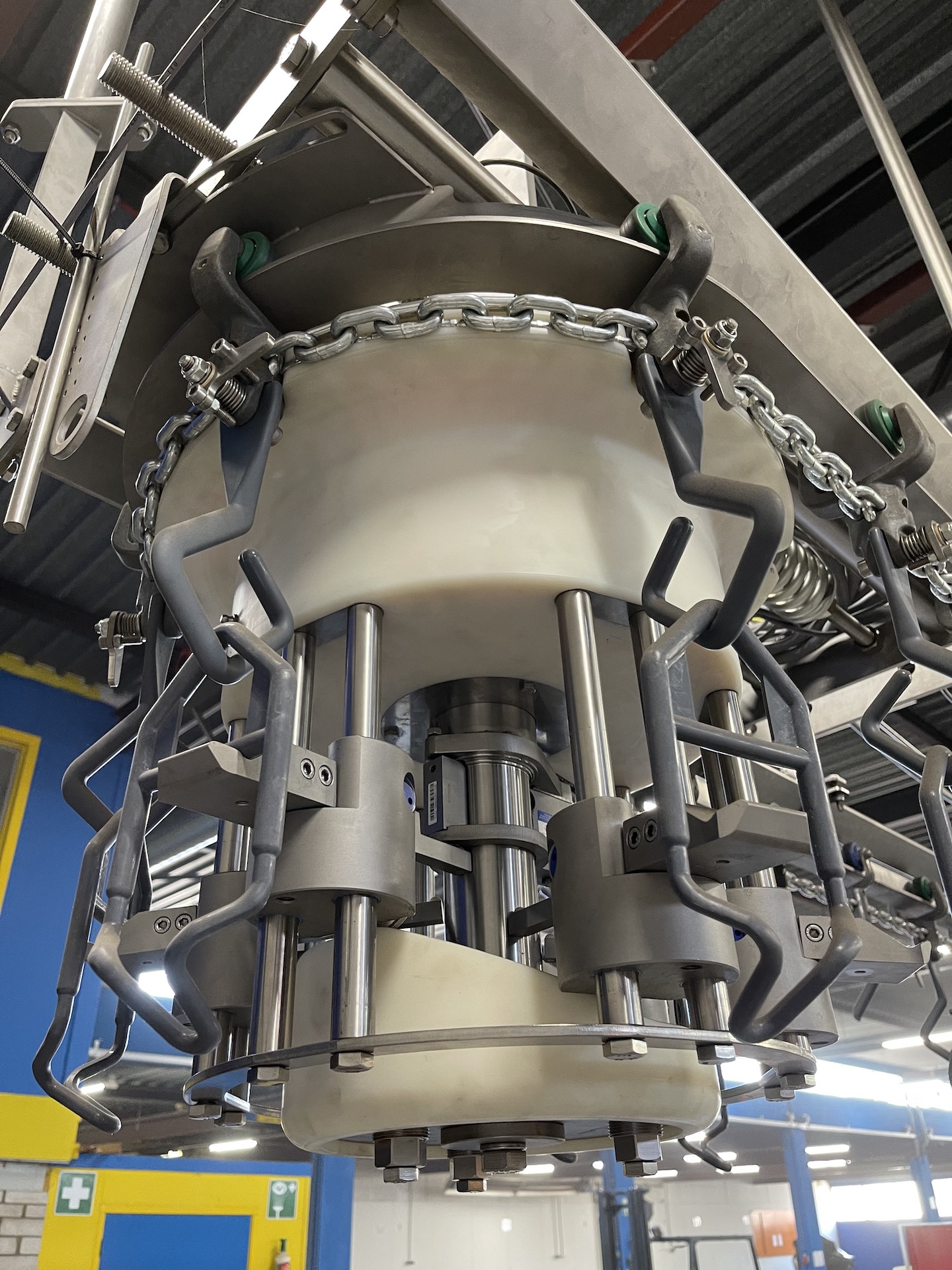

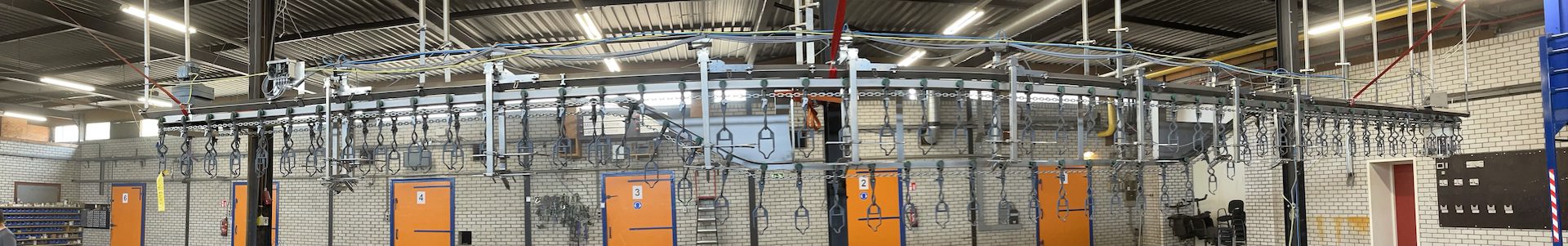

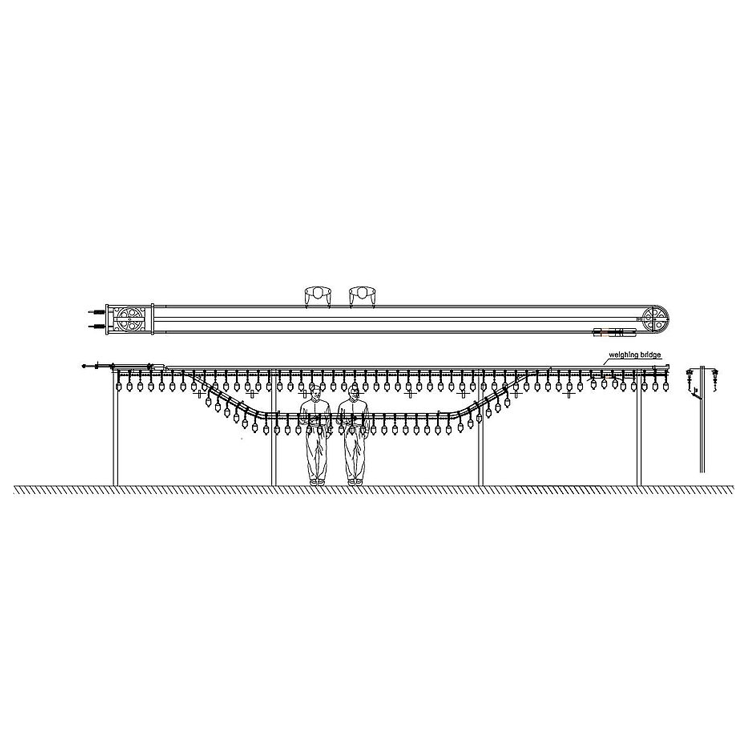

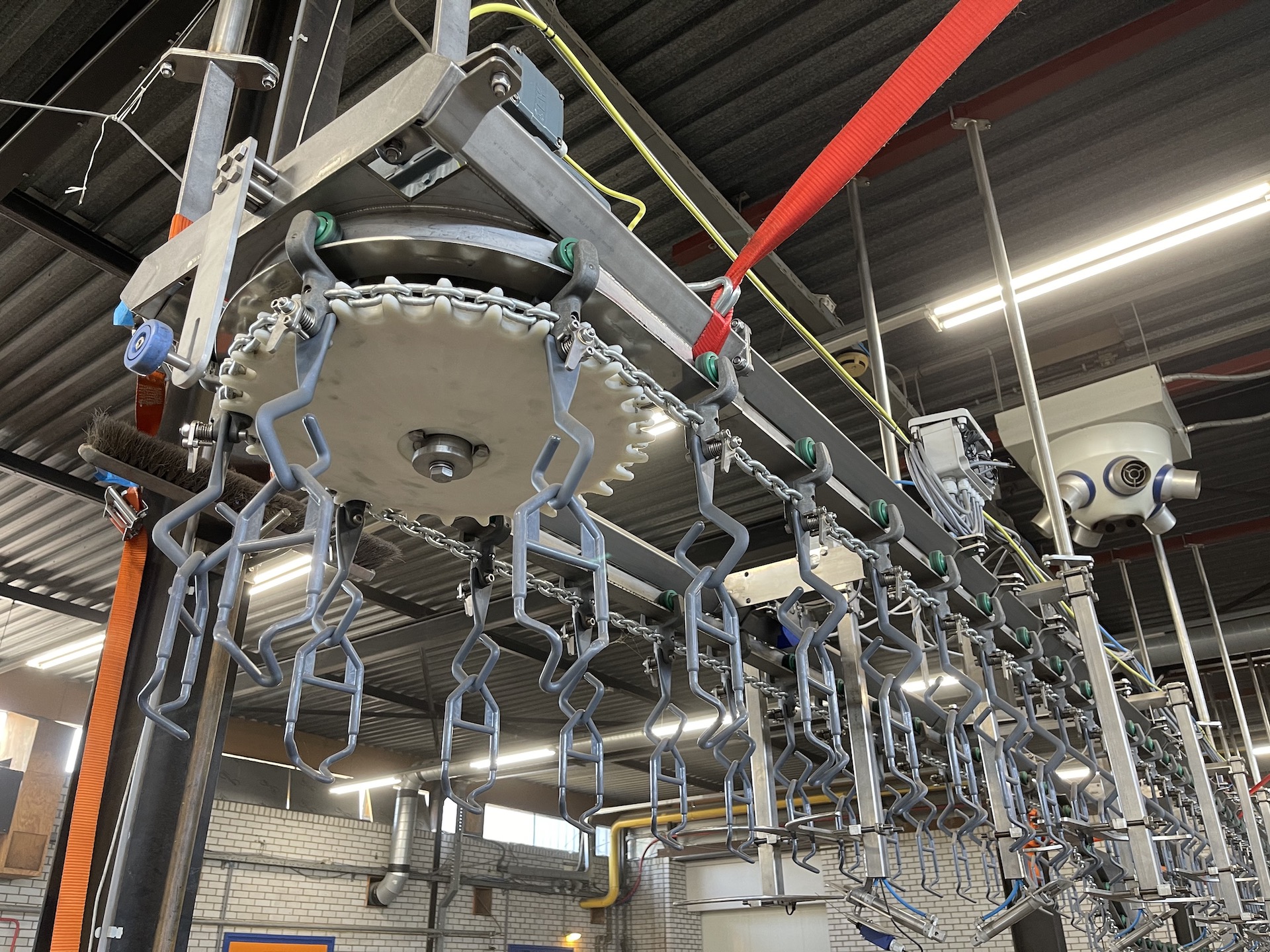

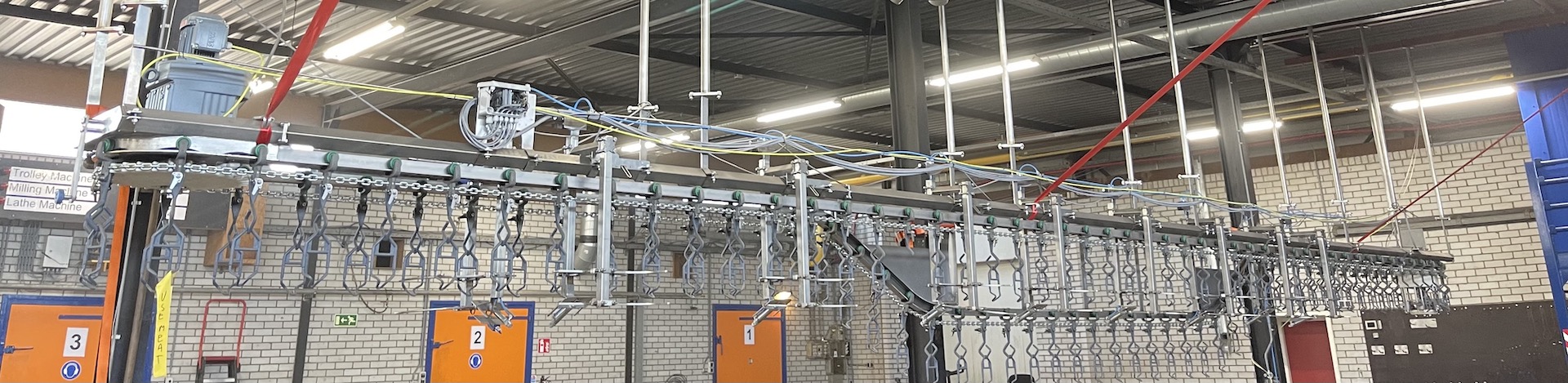

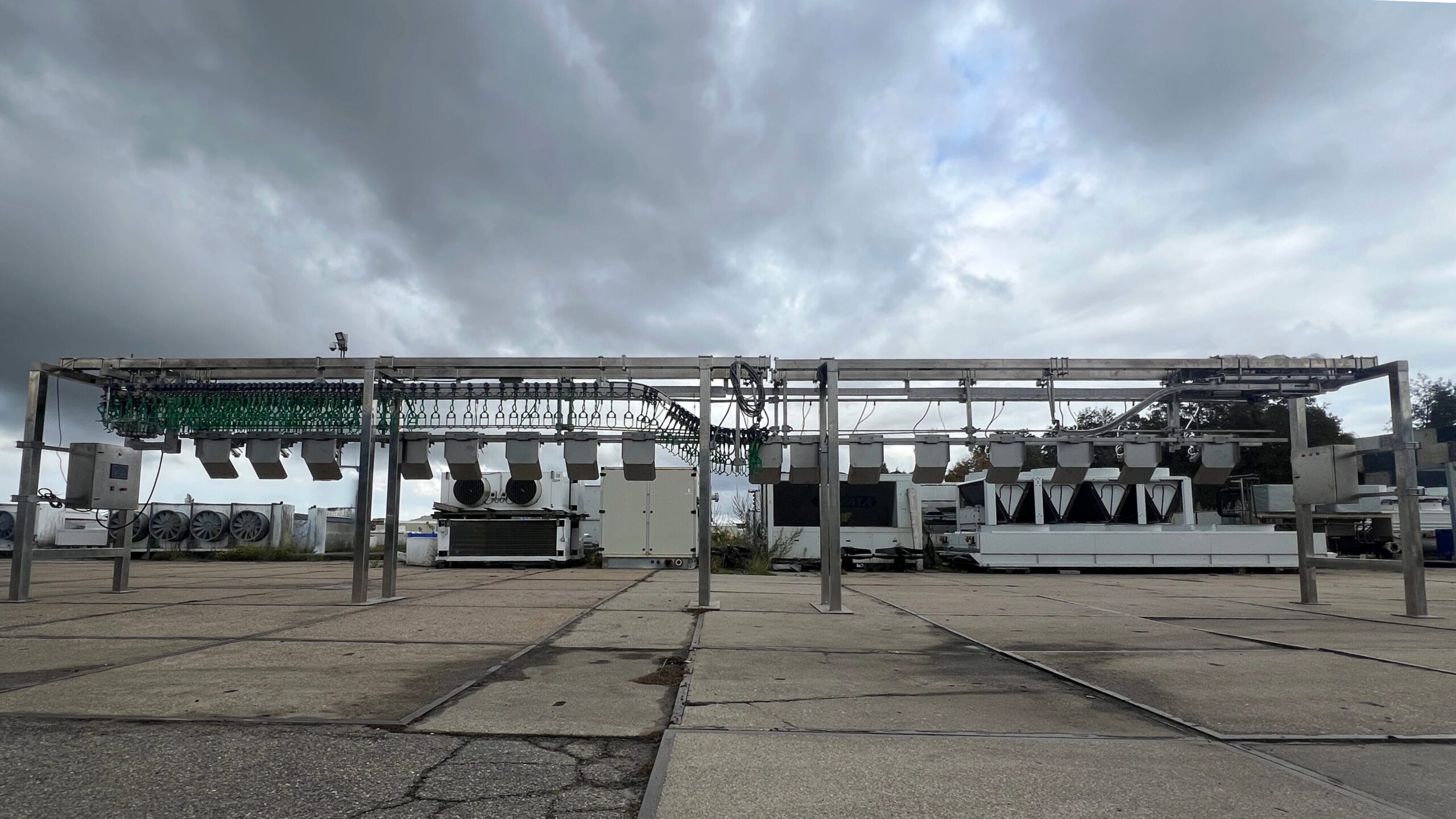

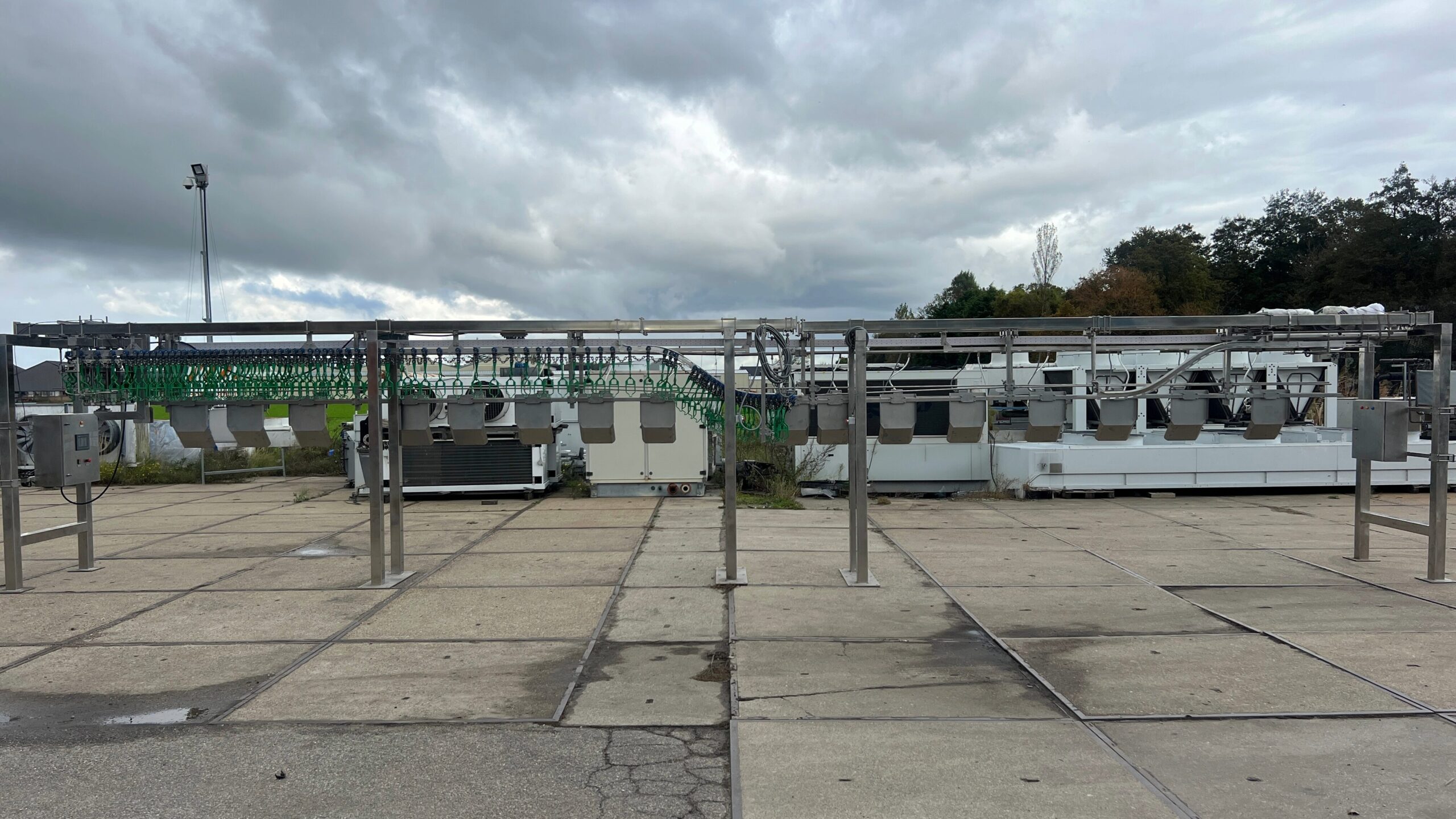

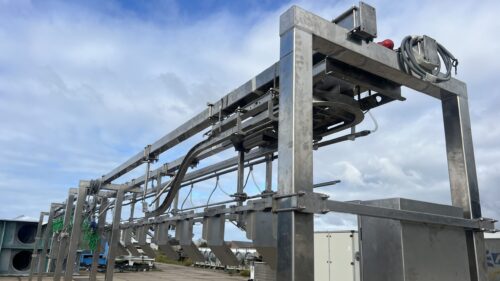

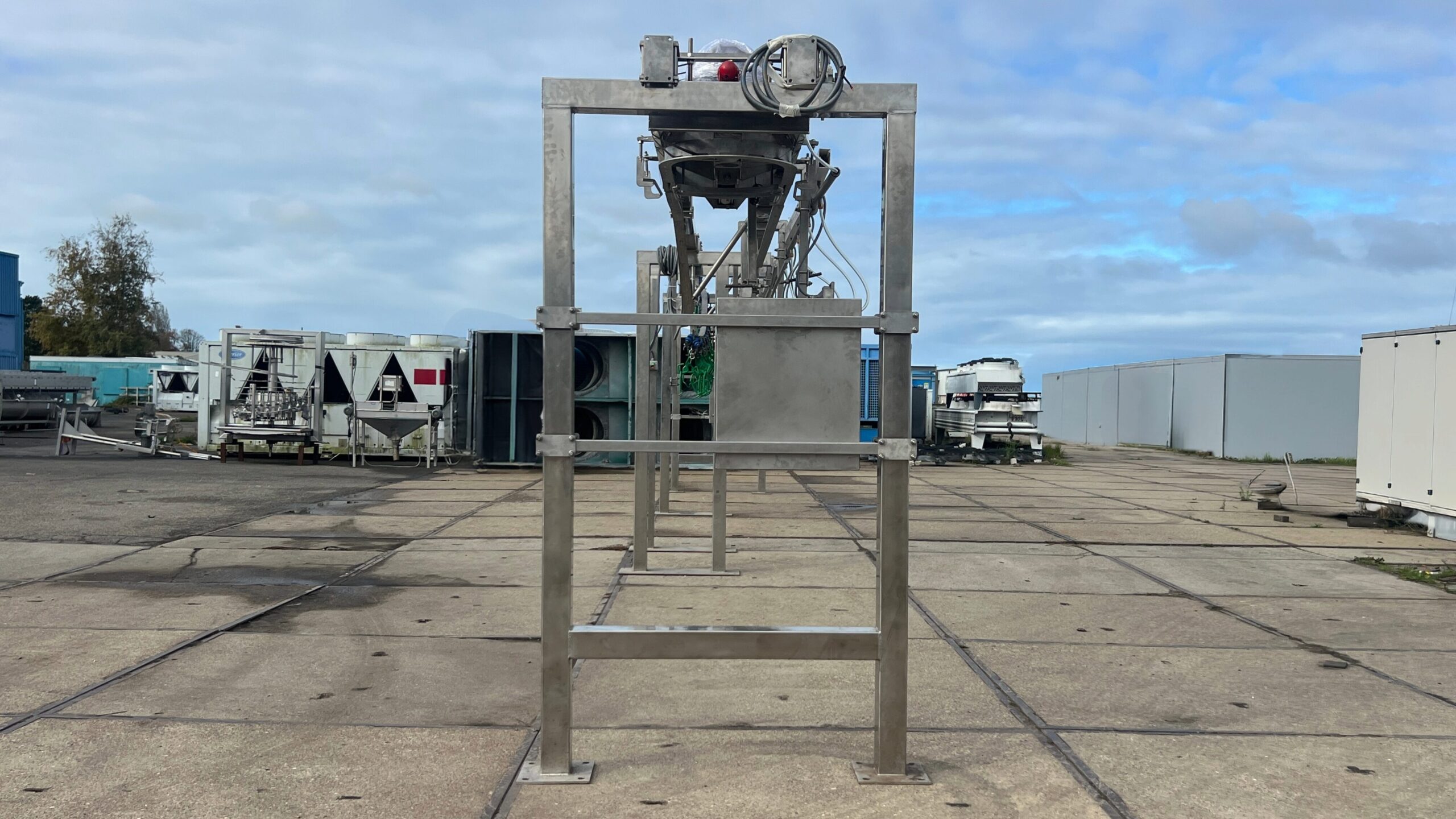

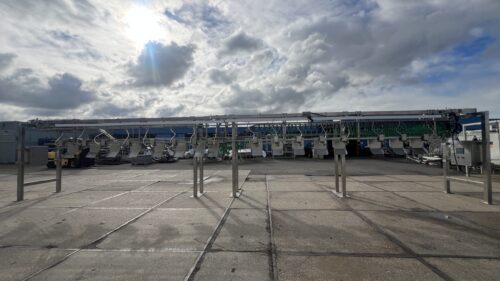

Precision Weighing Line for Optimal Poultry Processing
Our advanced poultry weighing line ensures highly accurate weight measurements, helping guide products into the correct processing lines. This system enhances productivity by delivering precise data used for sorting and processing based on customer requirements.
Key Features:
- Durable Construction: Built with stainless steel and non-corrosive materials, ensuring long-lasting performance and hygiene.

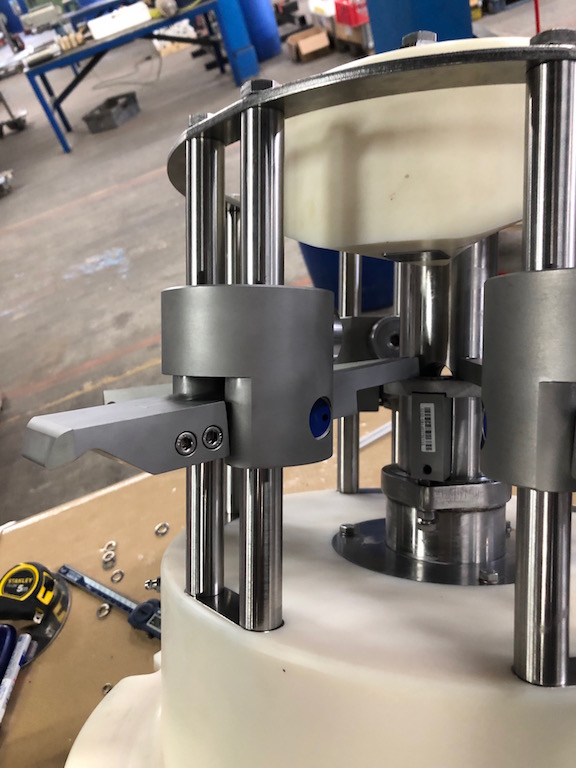

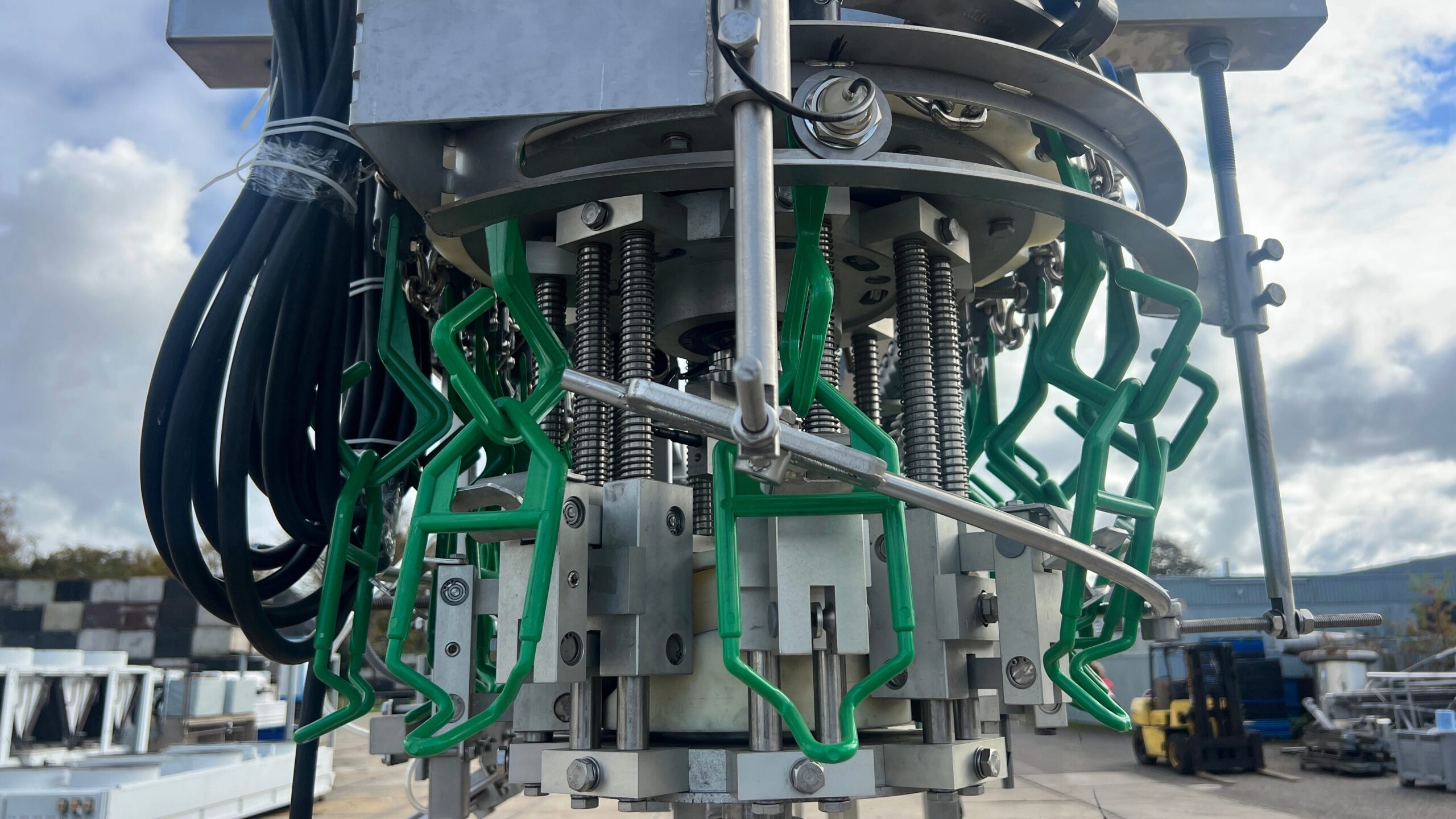

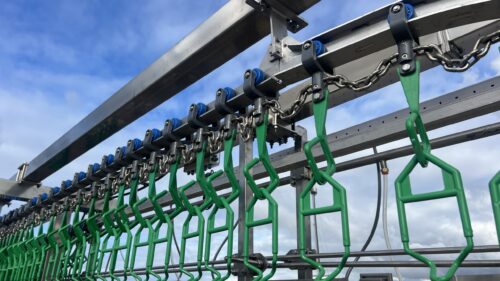

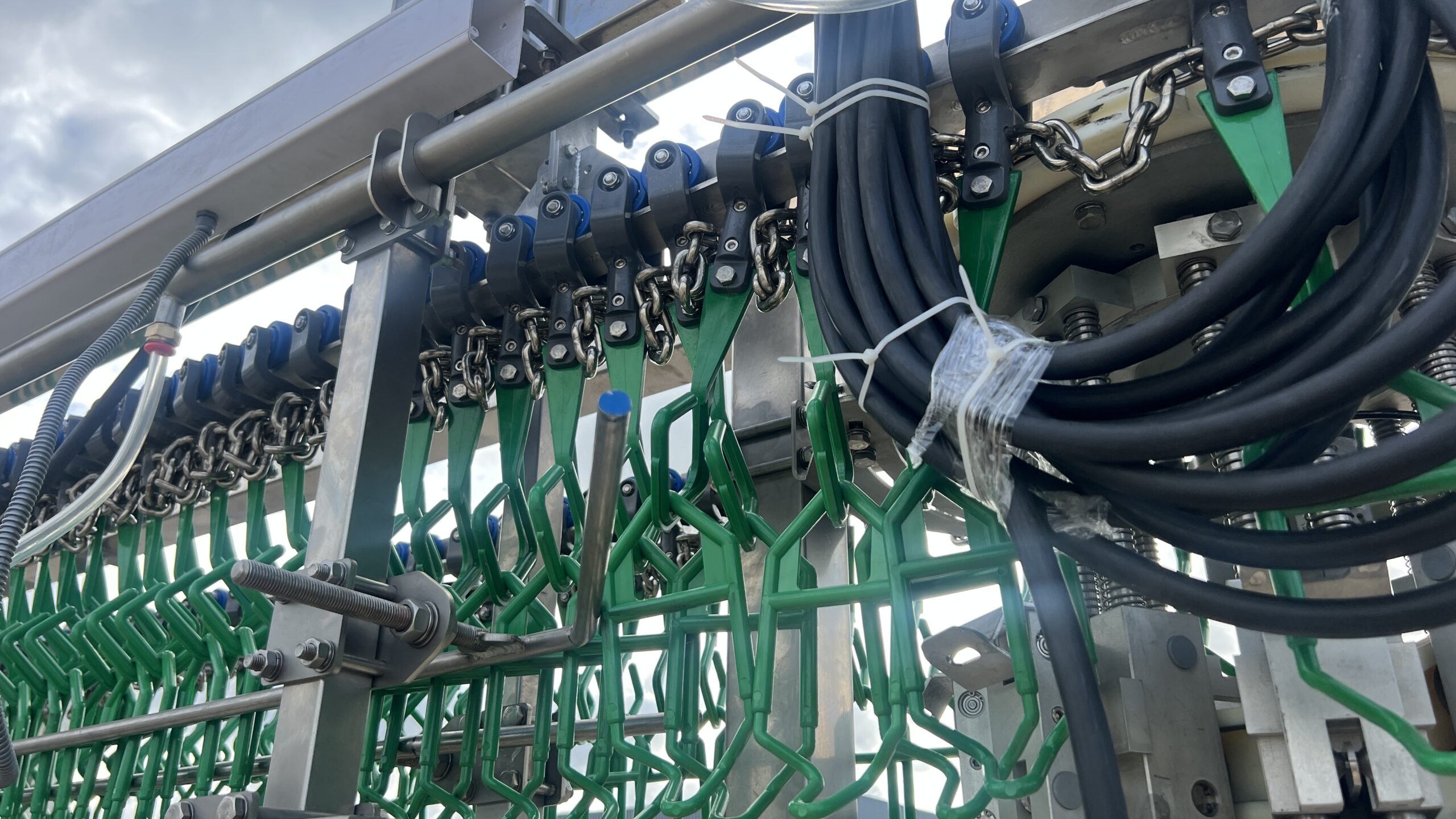

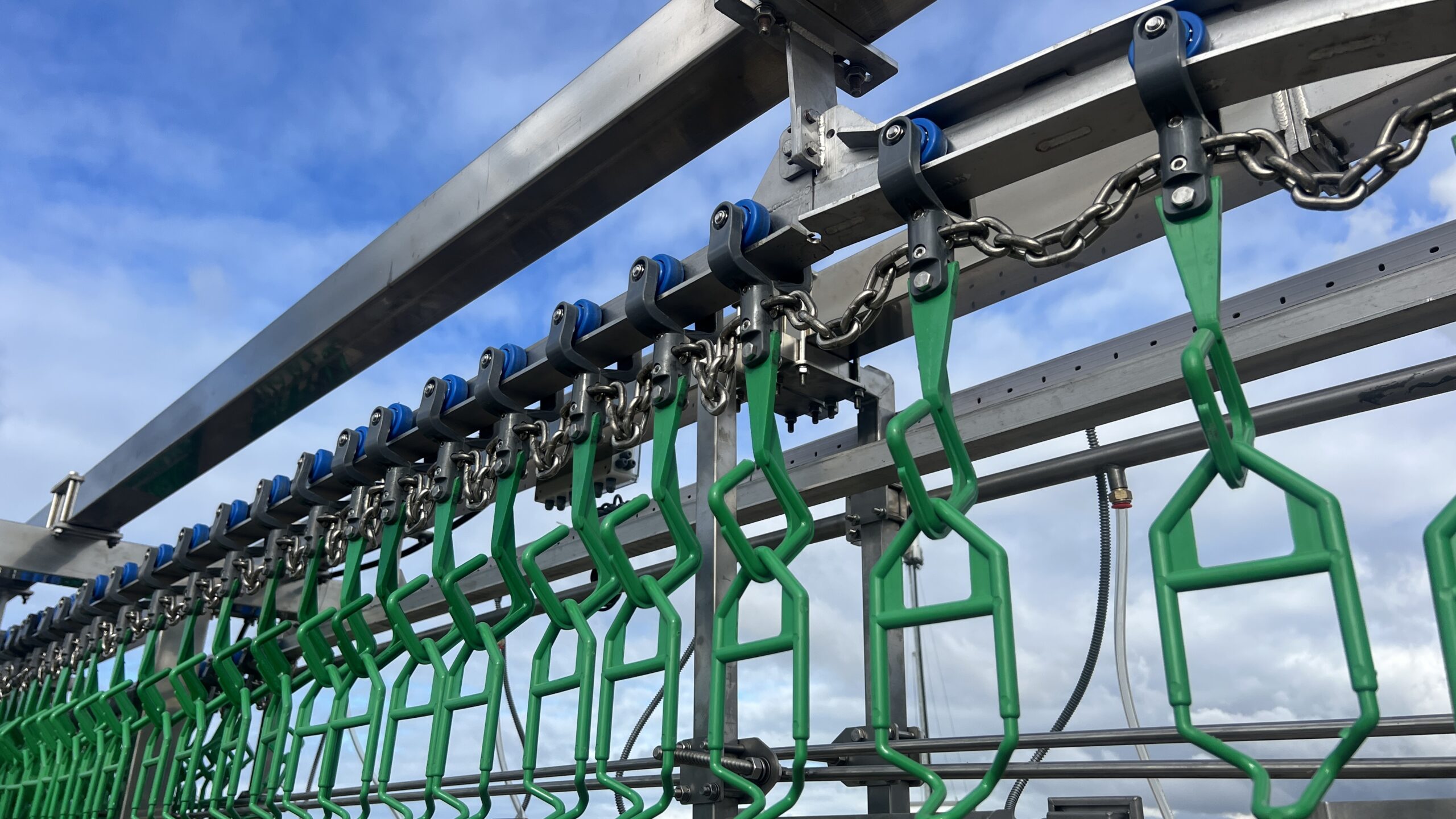

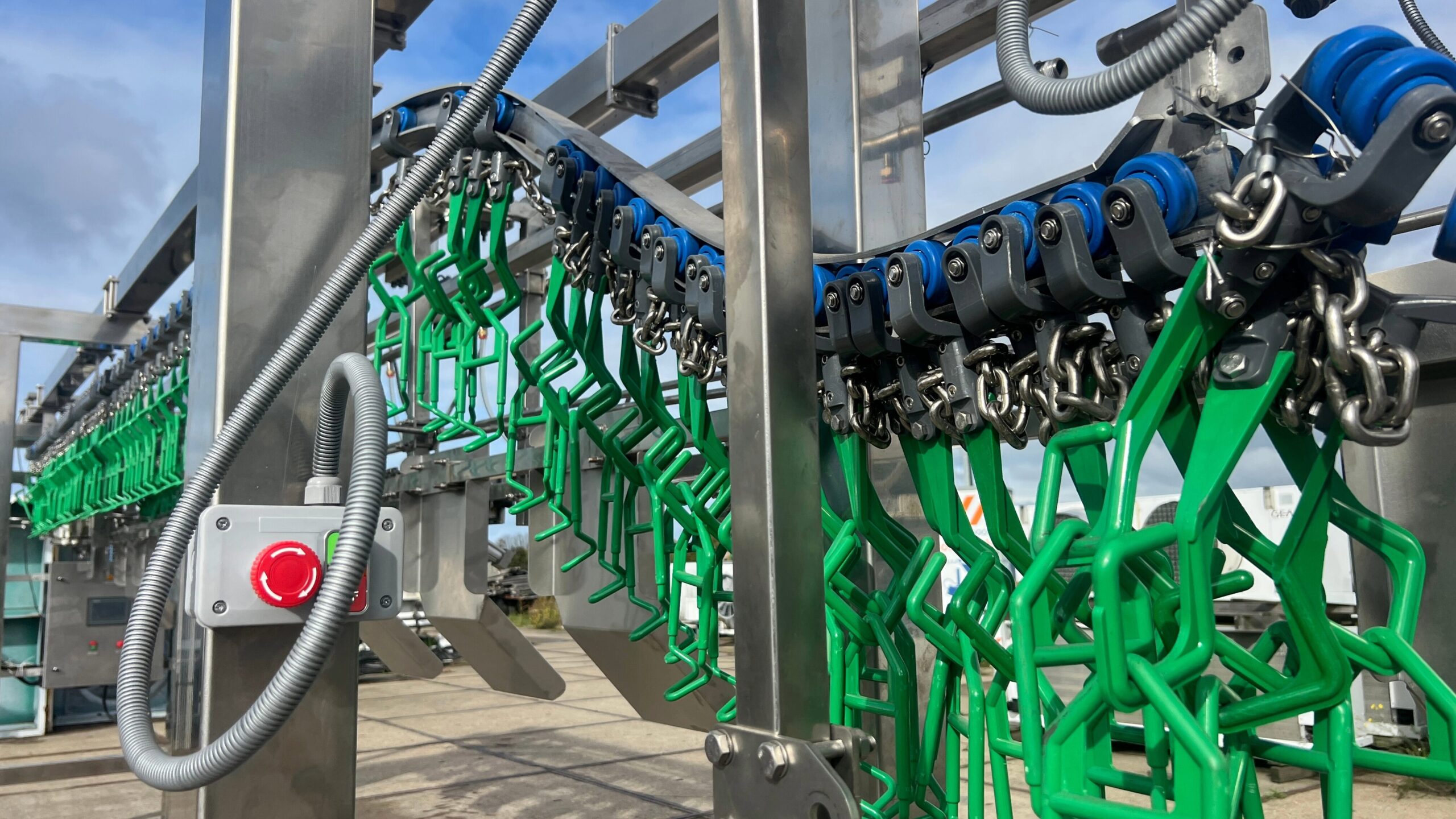

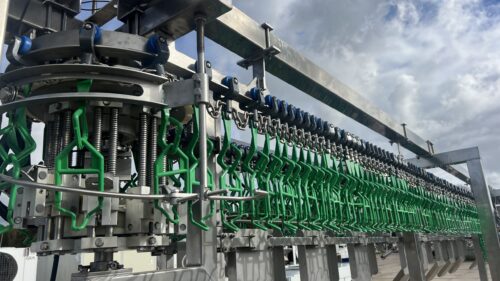

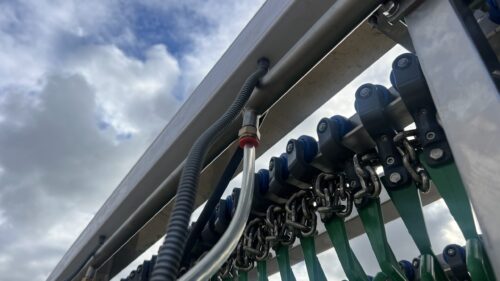

- Nylon Guide Bars: Ensure secure, smooth movement of weighing shackles along the line.

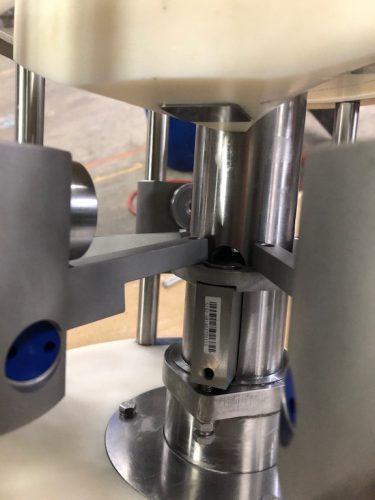

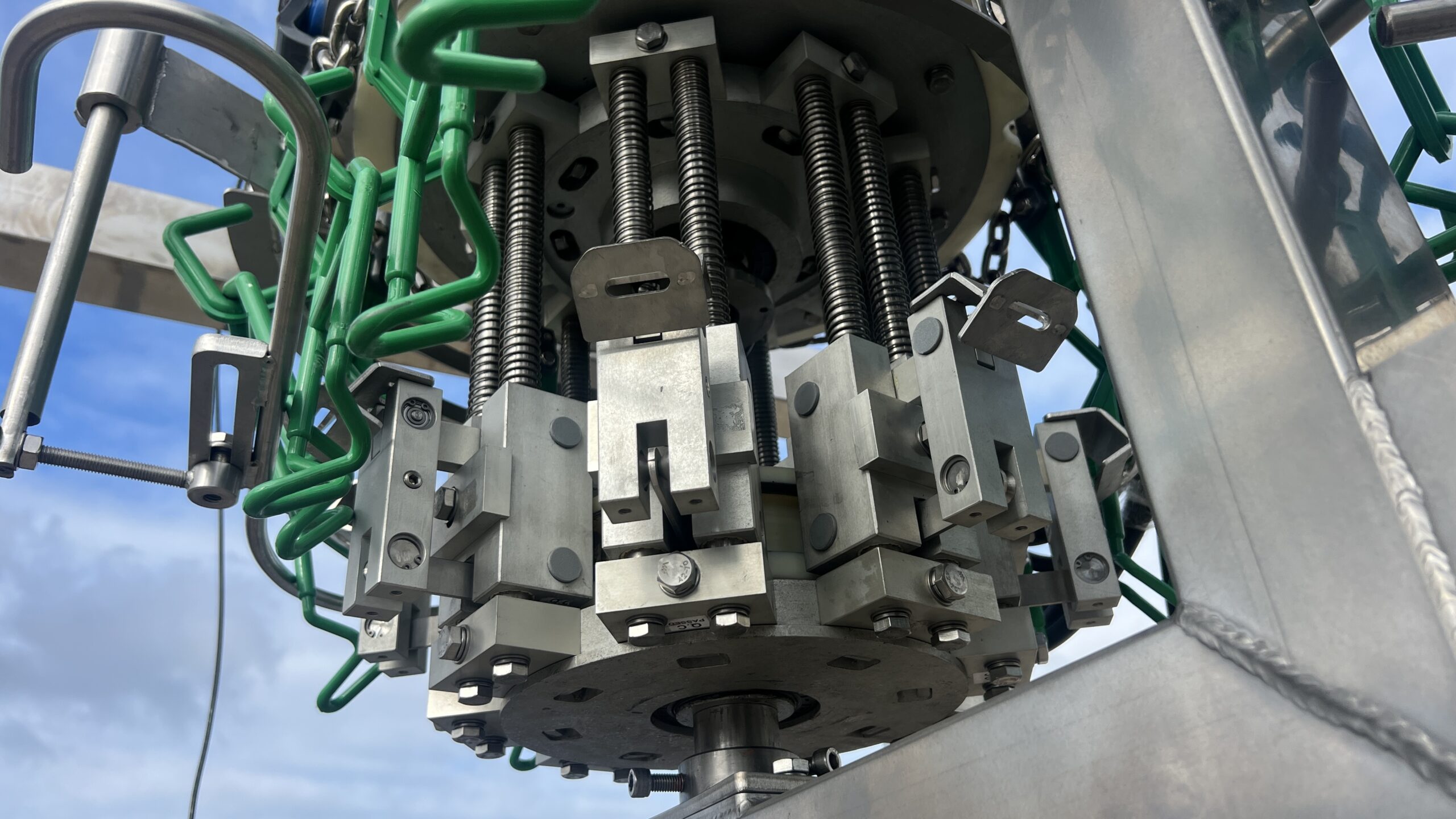

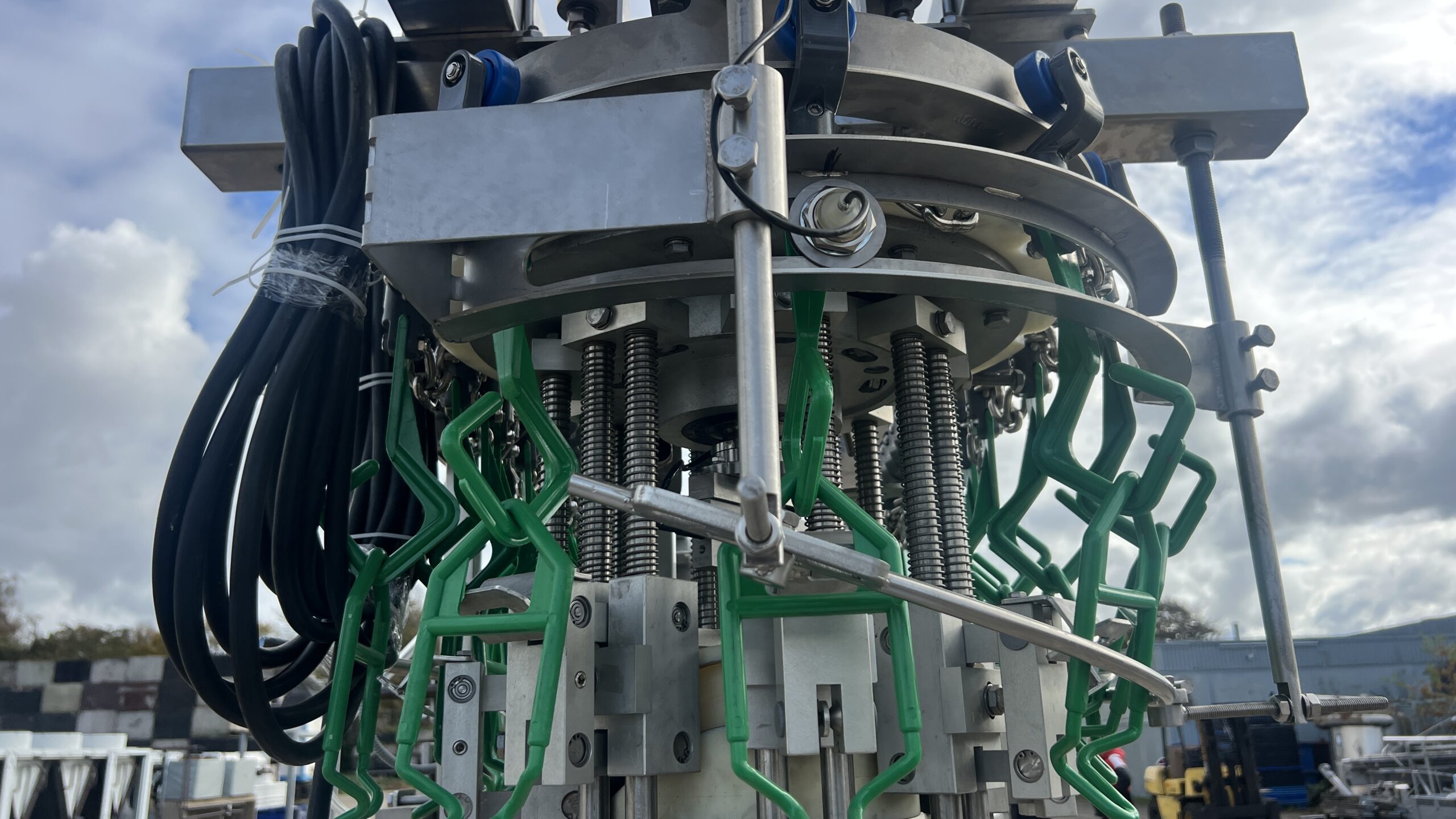

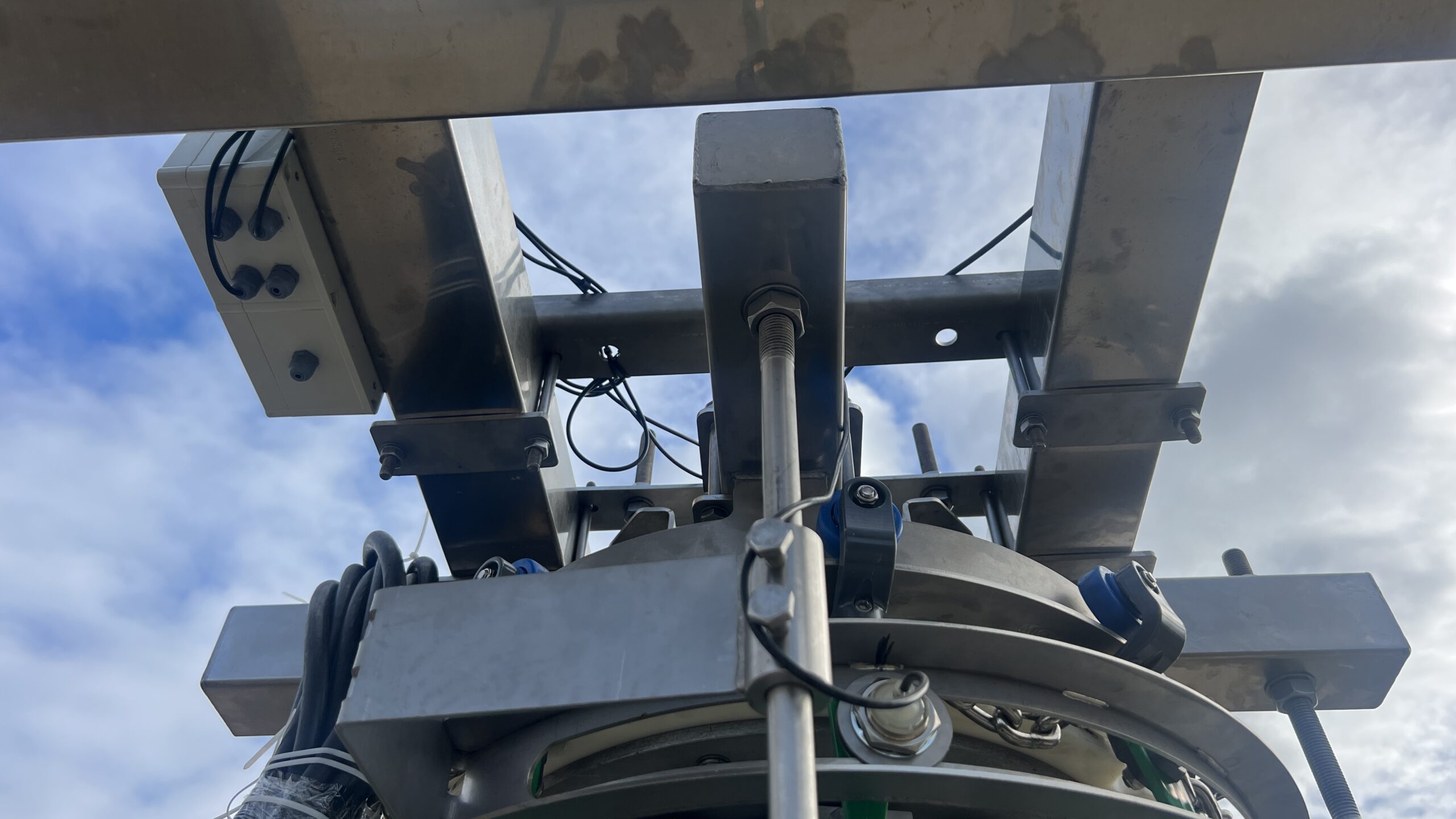

- Load Cell Accuracy: The load cell measures the bird’s weight exclusively, eliminating interference from shackles or other mechanical components.

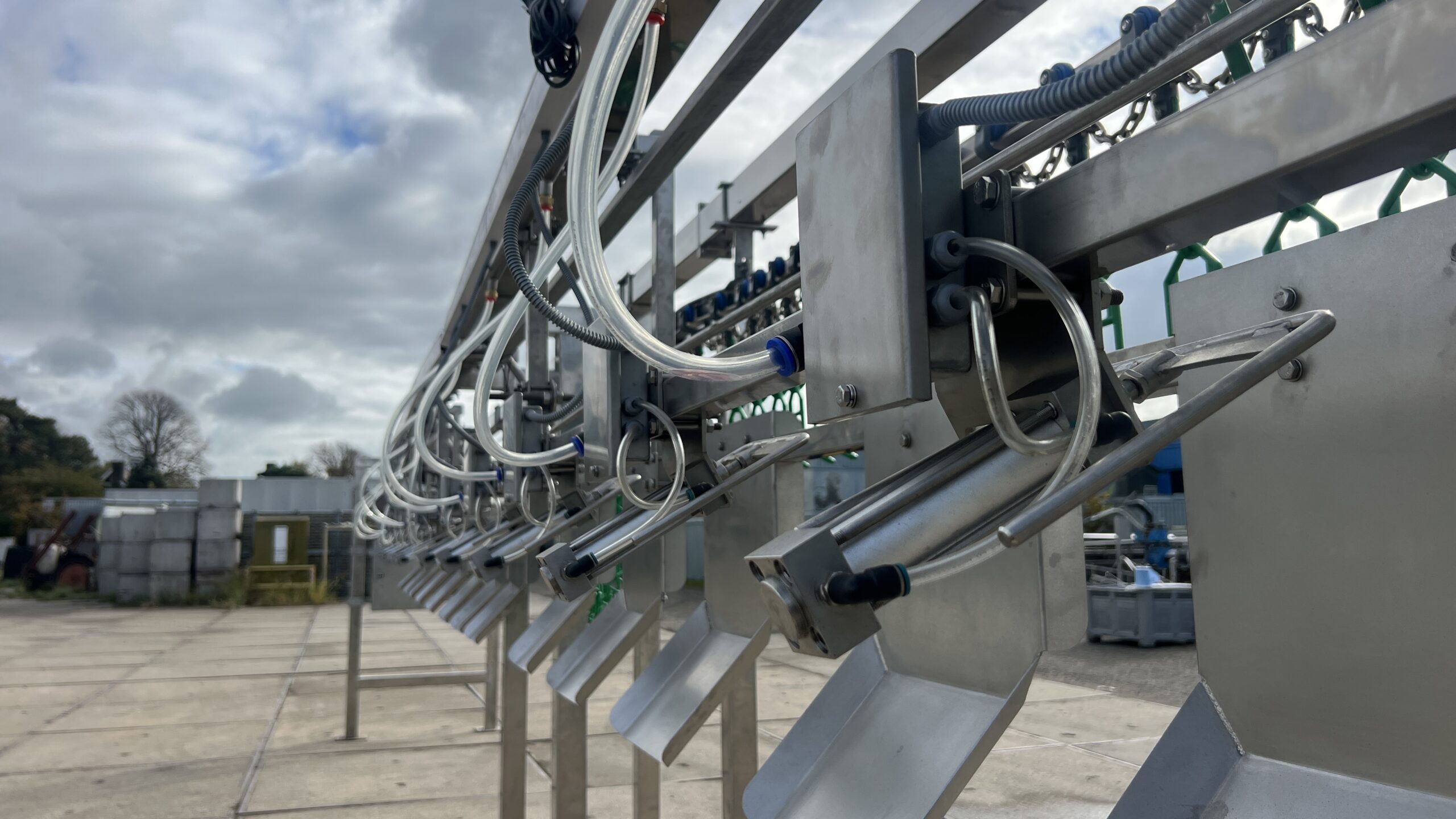

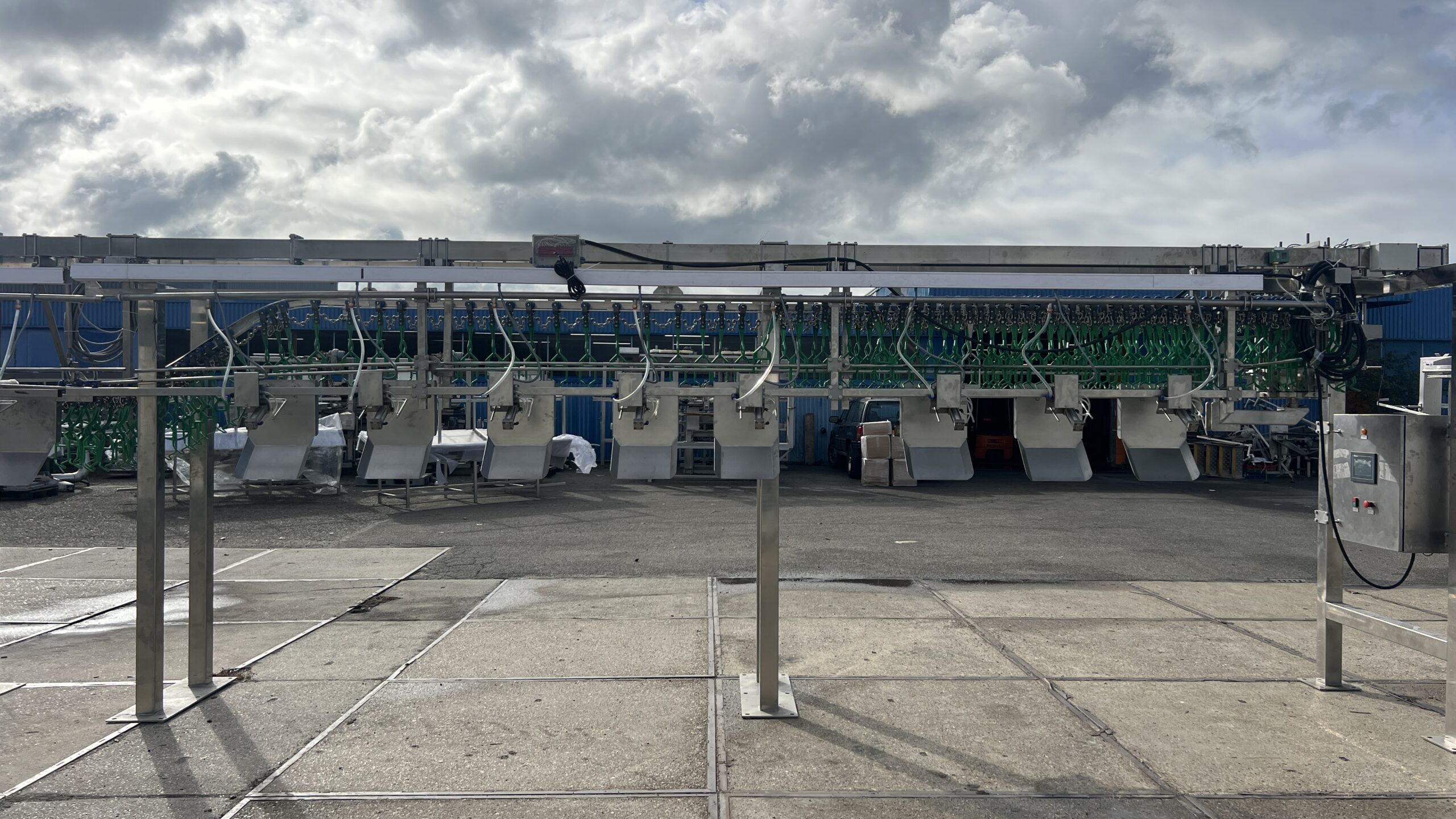

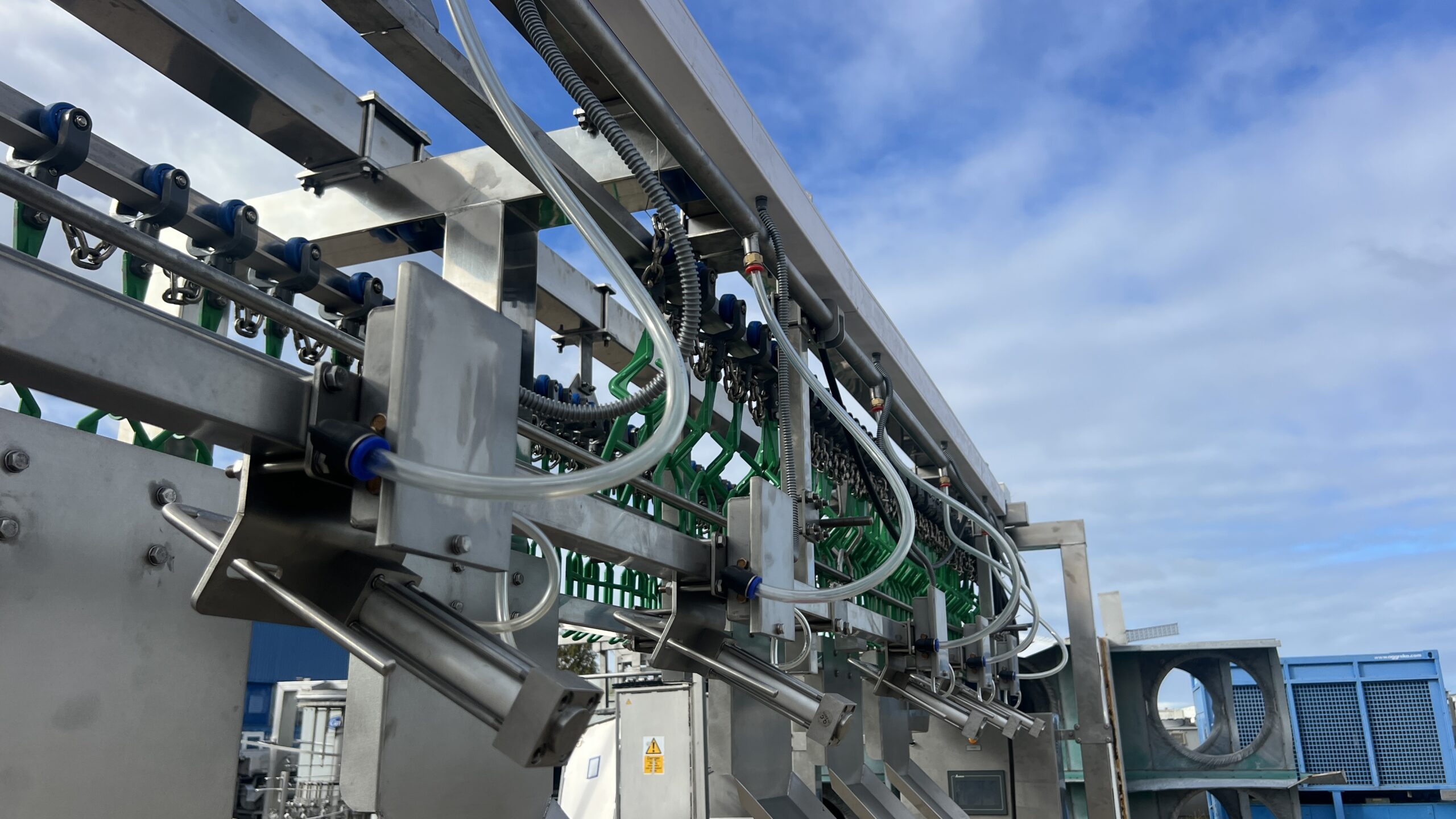

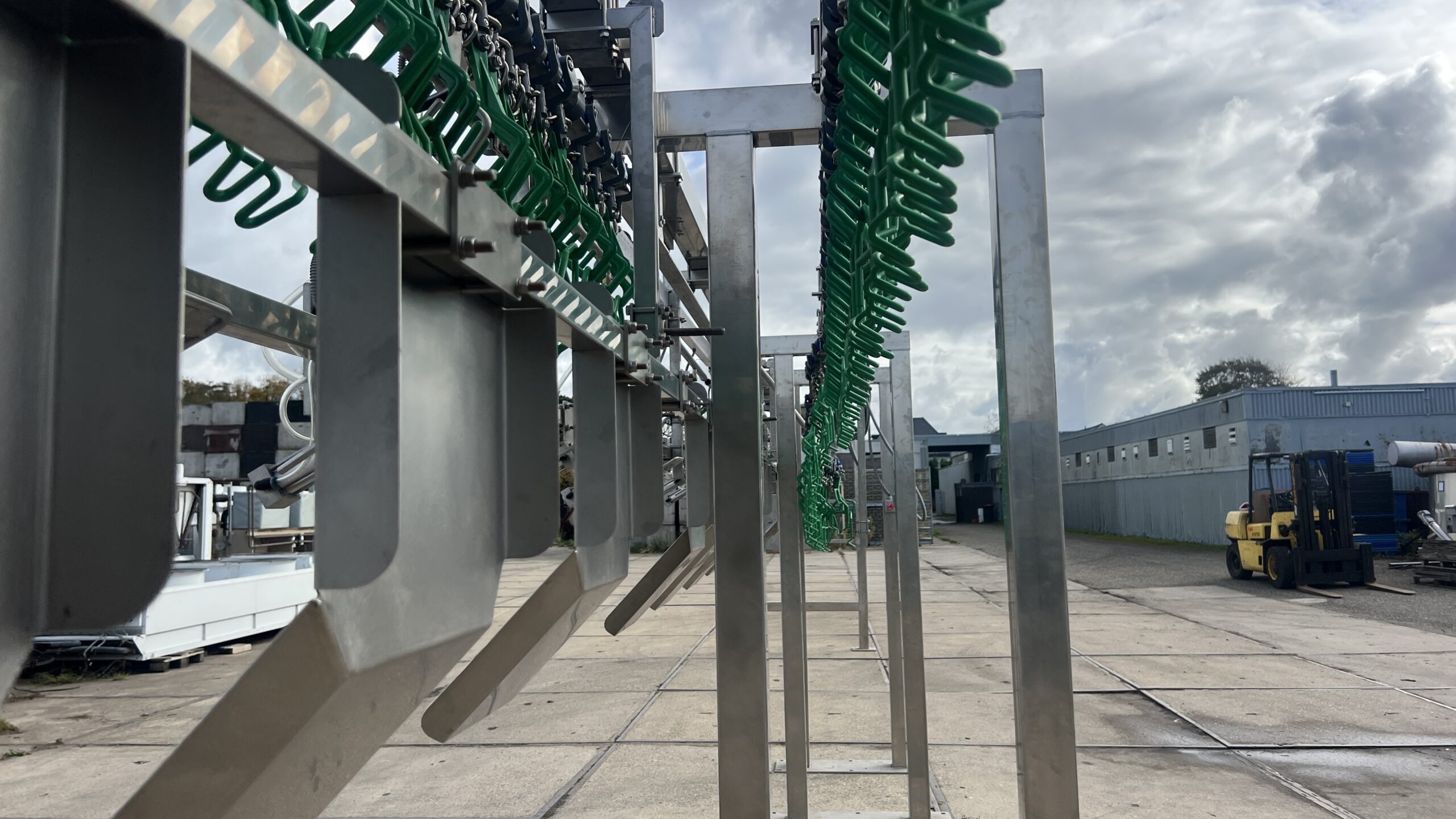

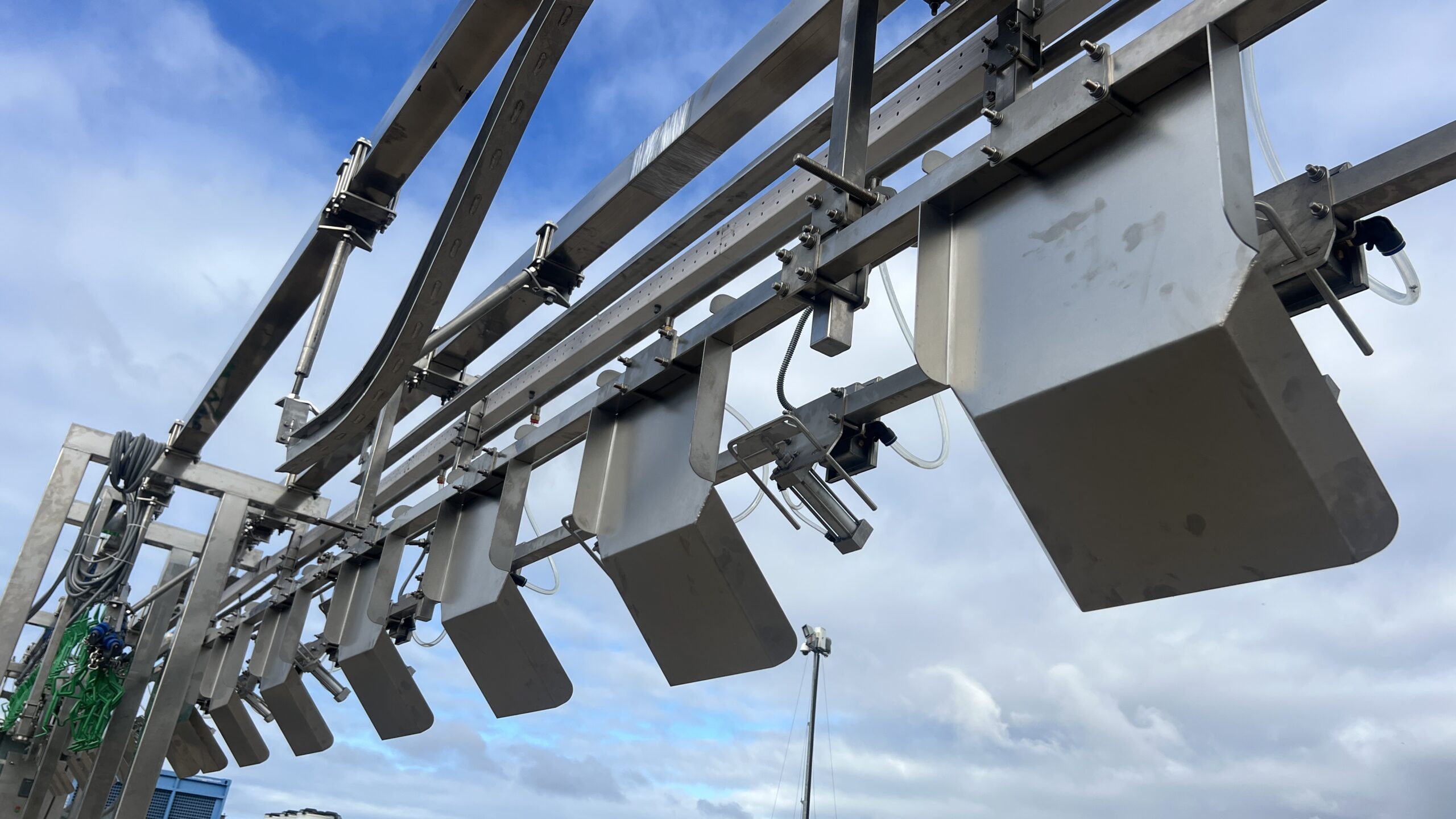

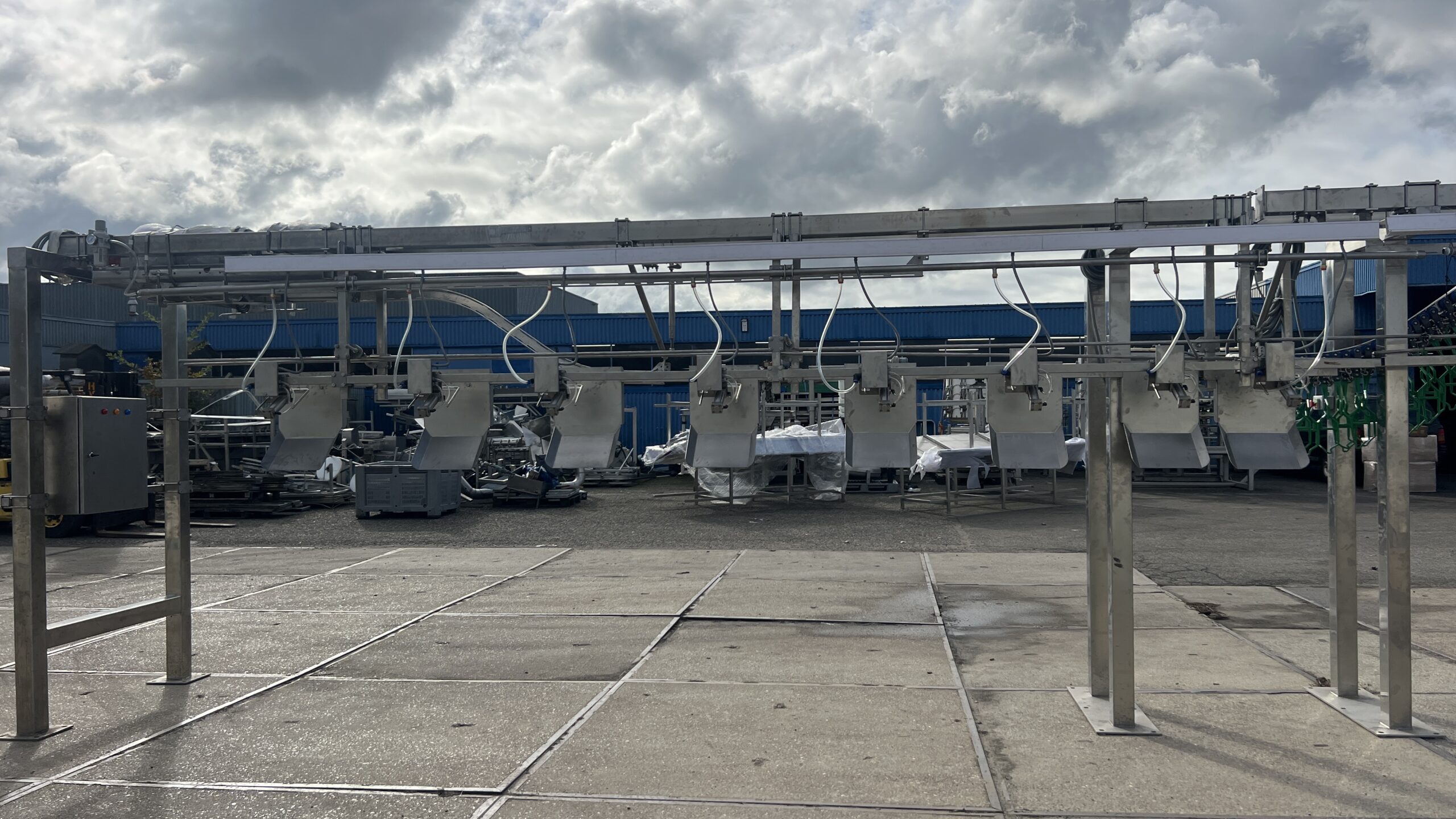

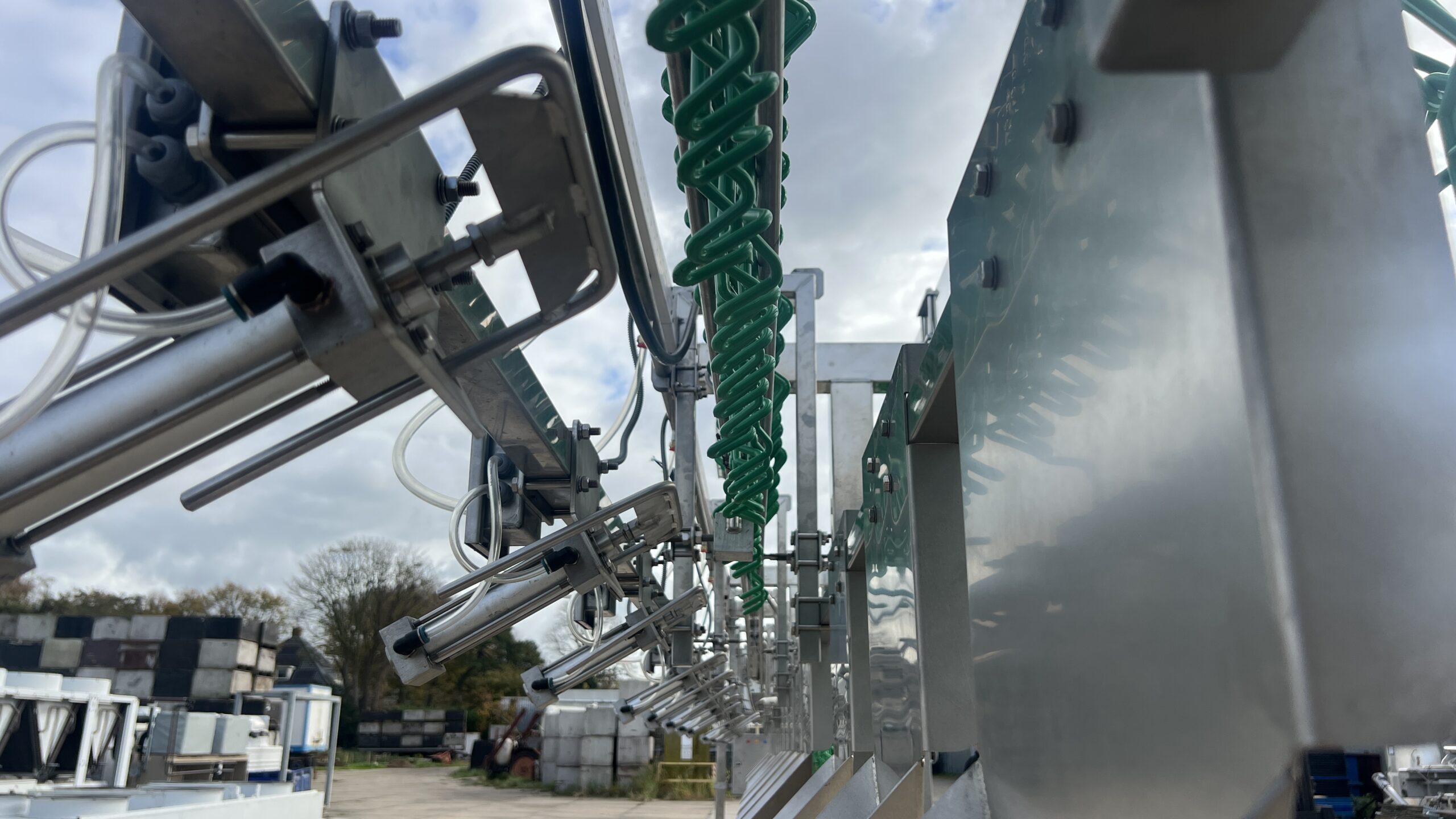

- Multiple Drop-Off Stations: Birds are sorted by weight across several drop-off points for efficient processing (6 to 20 dropping stations, depending on the model).
- Customizable Processing: Birds can be sorted for whole-bird packaging or directed to cut-up lines for portioning based on customer specifications.
This system offers the precision and flexibility required to meet customer demands and optimize your poultry processing operations.
Technical Specifications:

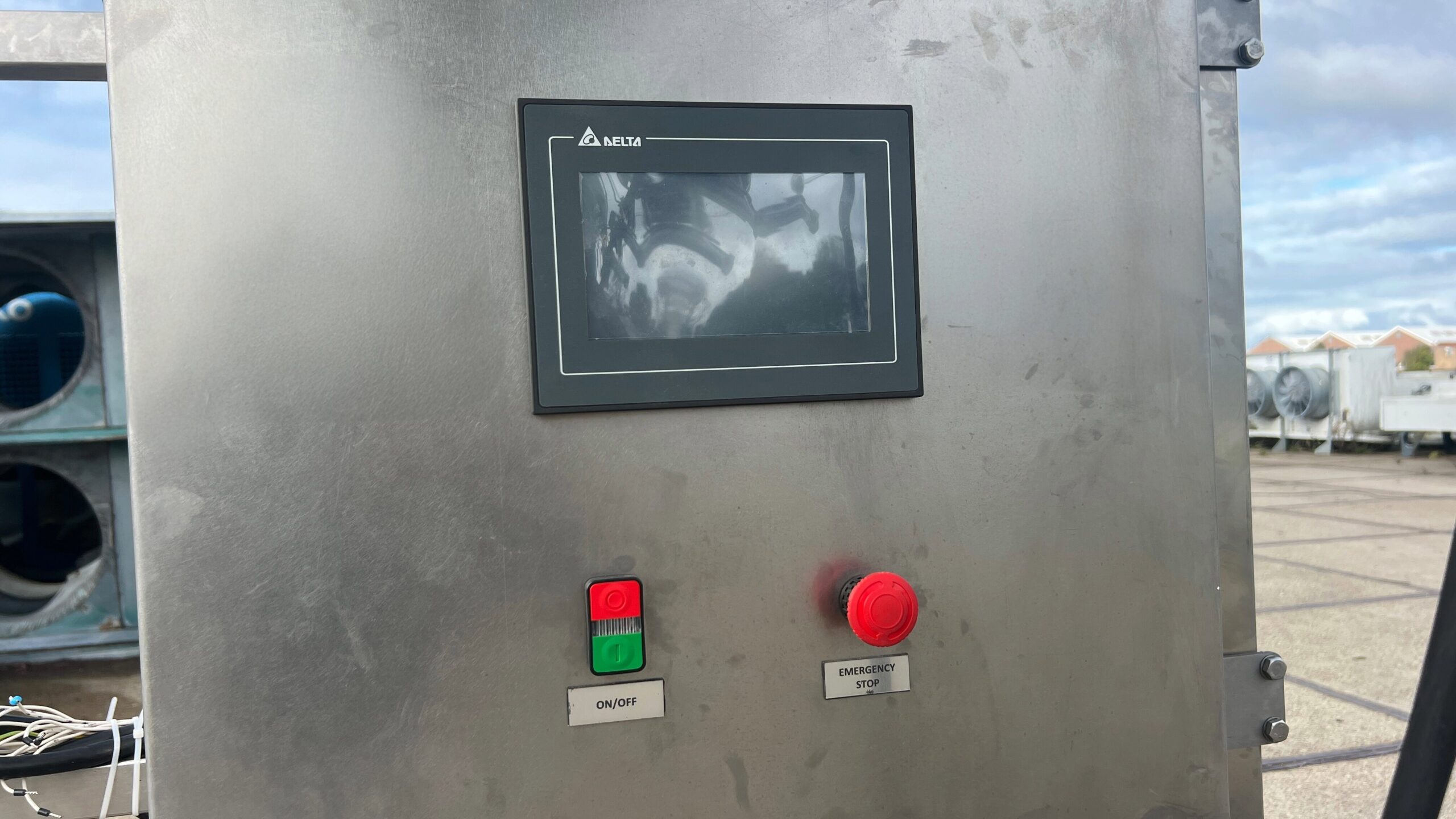

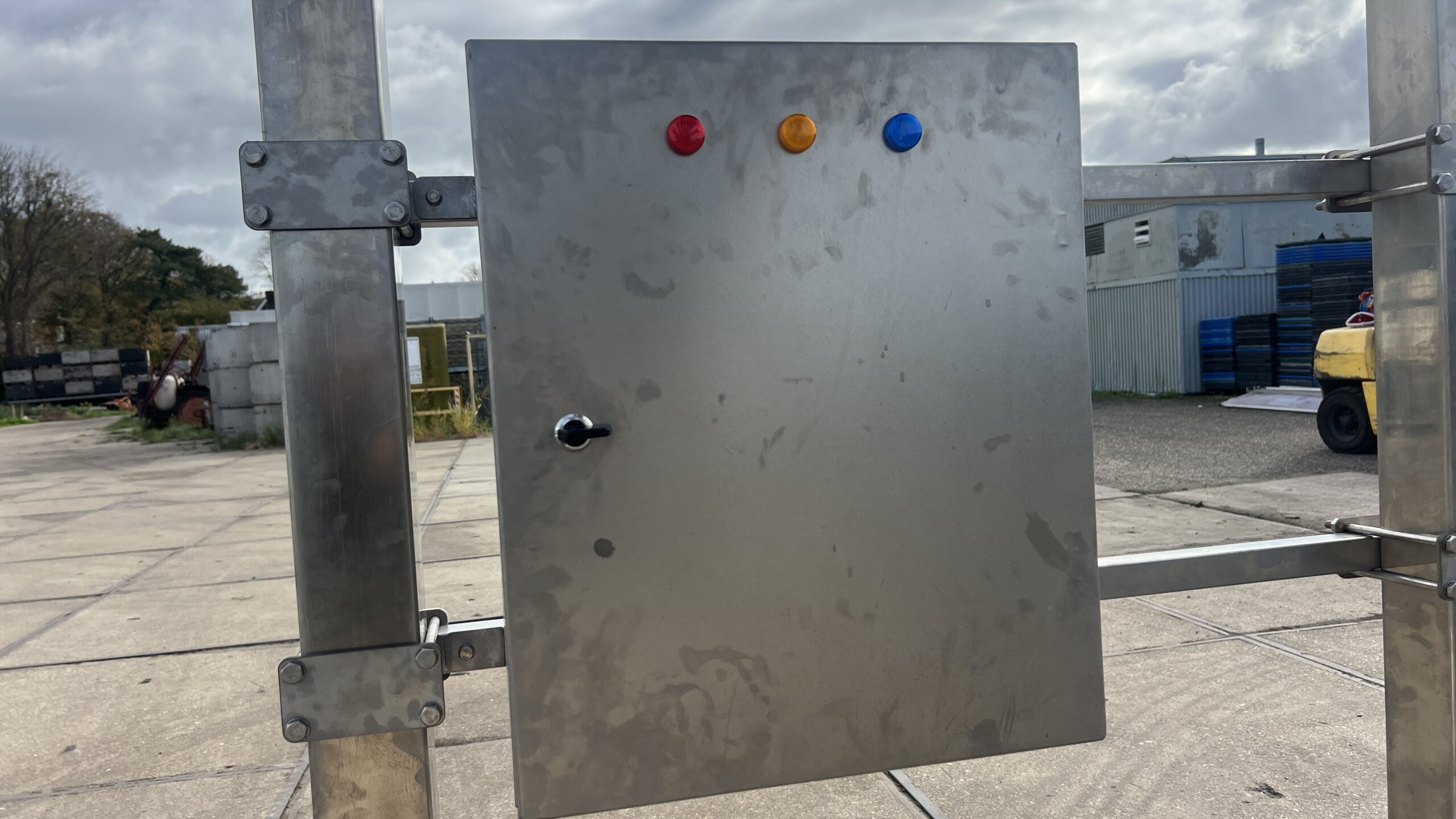

- Panel: Stainless steel for durability and hygiene.
- Main Switch: Moeller for reliable control.
- Power Supply: 24VDC, Phoenix.
- PLC: Omron CP series for efficient automation.
- Terminals: Wago Cage clamp for secure connections.
- Power Options:
- 100–240VAC, 50/60Hz single-phase
- 380–480VAC, 50/60Hz three-phase (optional)
- Solenoids: 24VDC for precise control.
Weighing Line Standard Components:
- Trigger Sensor Shackle: M30, 24VDC, 3-wire, 5-meter cable.

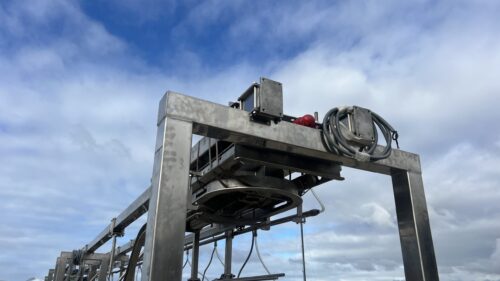

- Digital Weight Indicator: Mounted above load cell for real-time accuracy checks.
- Load Cell: 30KG capacity, 6-wire, 5-meter cable.
- Passive M12 Distributor Box: 24VDC, 5-meter cable.

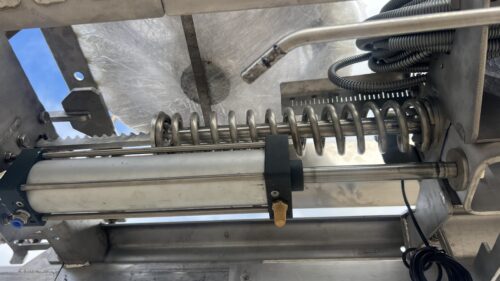

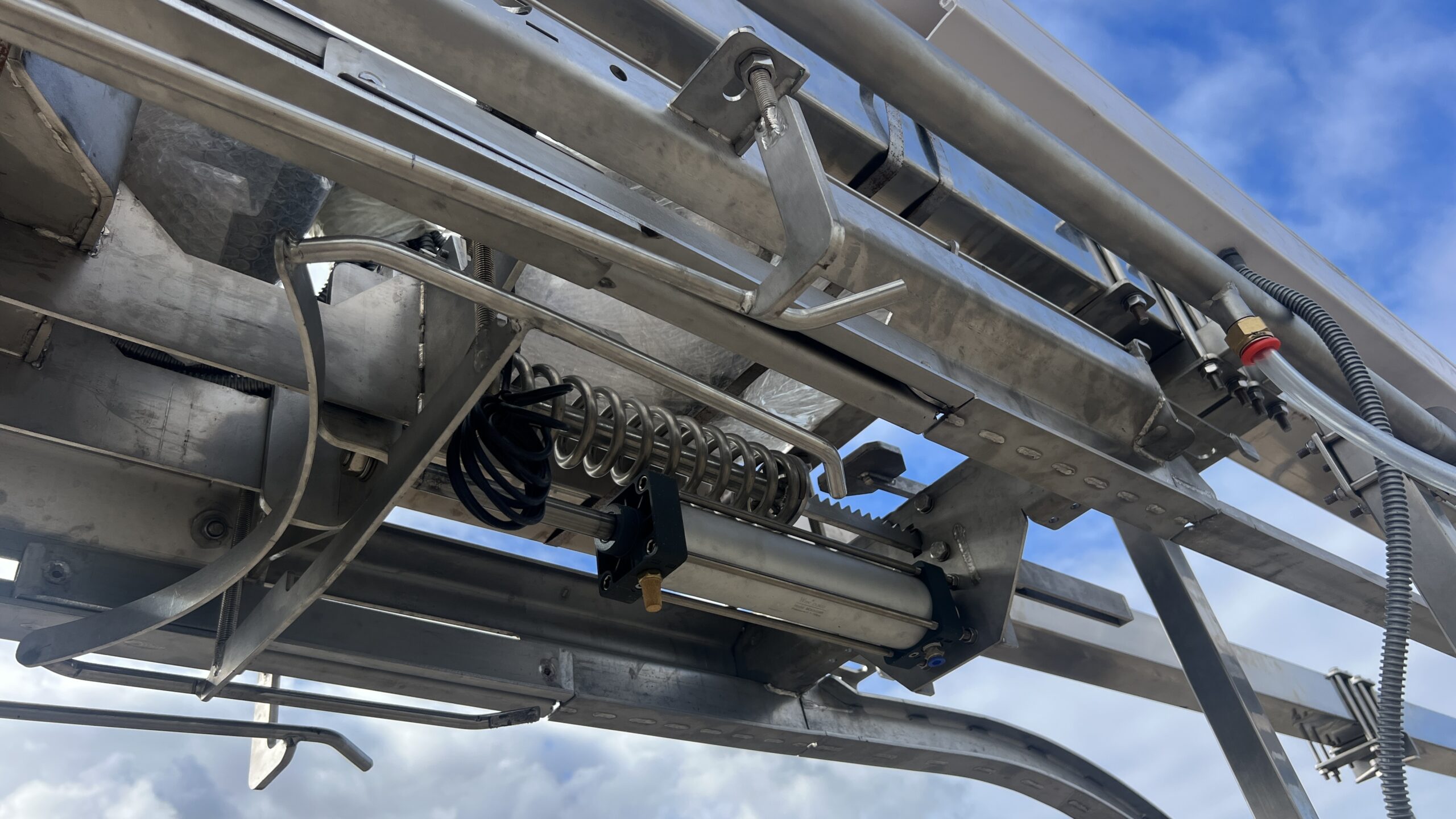

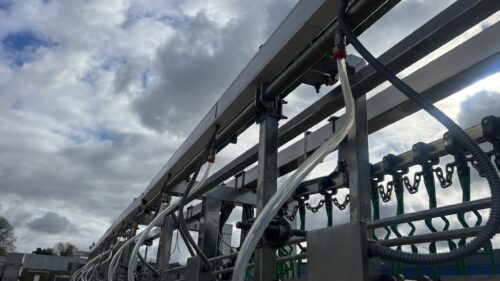

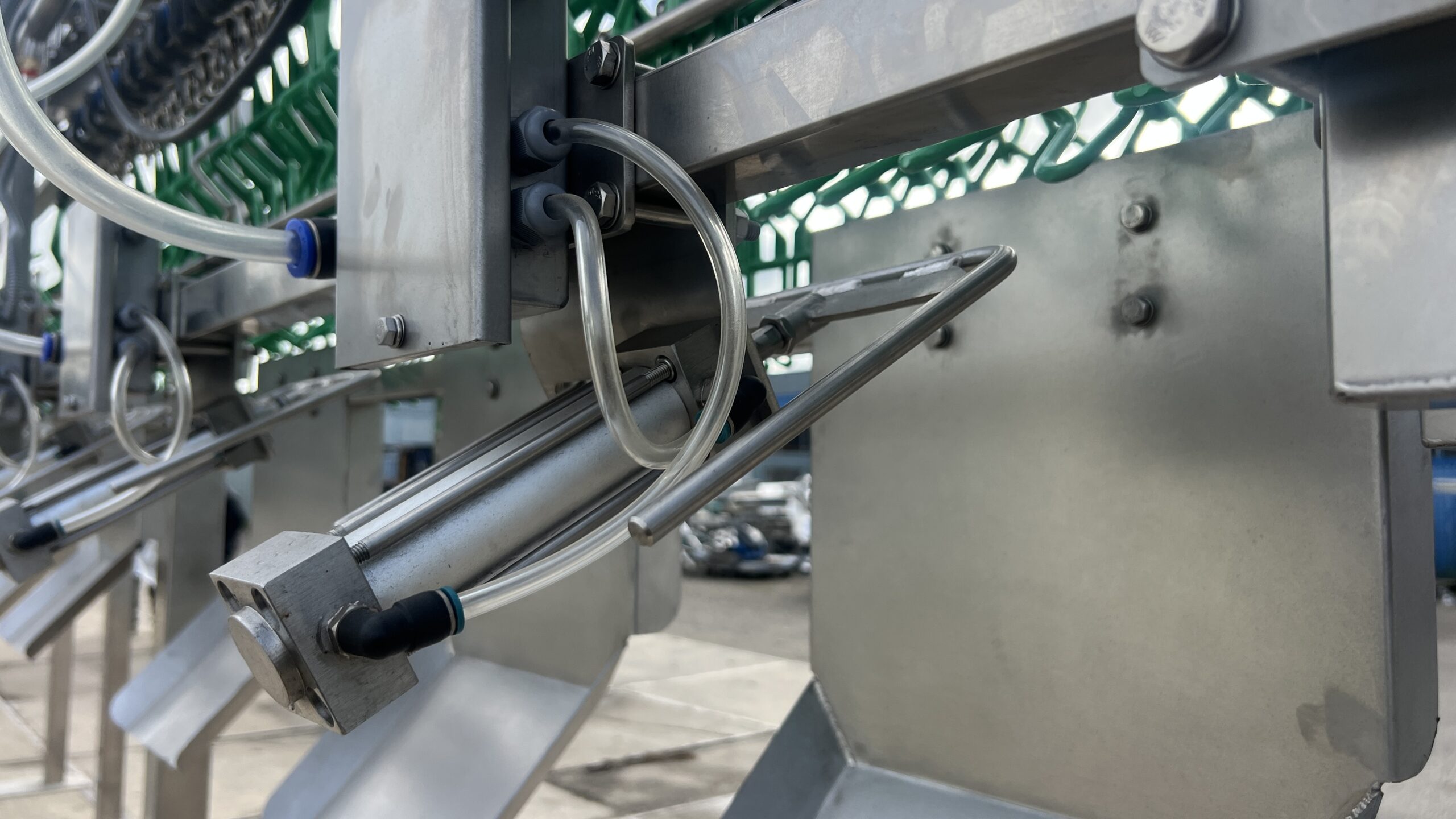

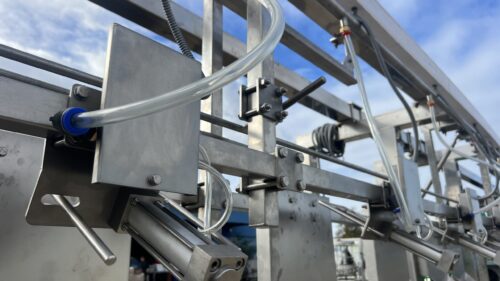

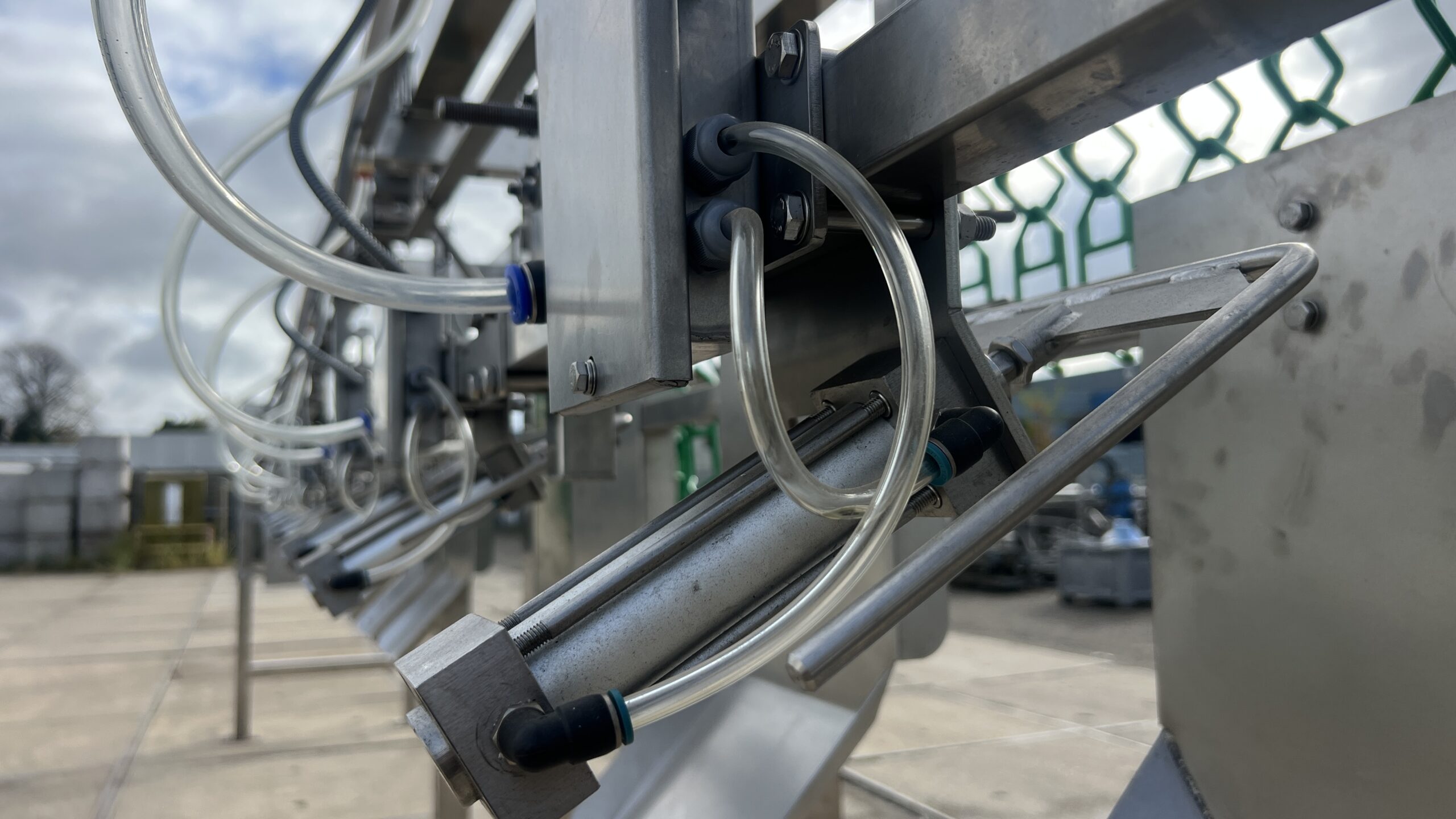

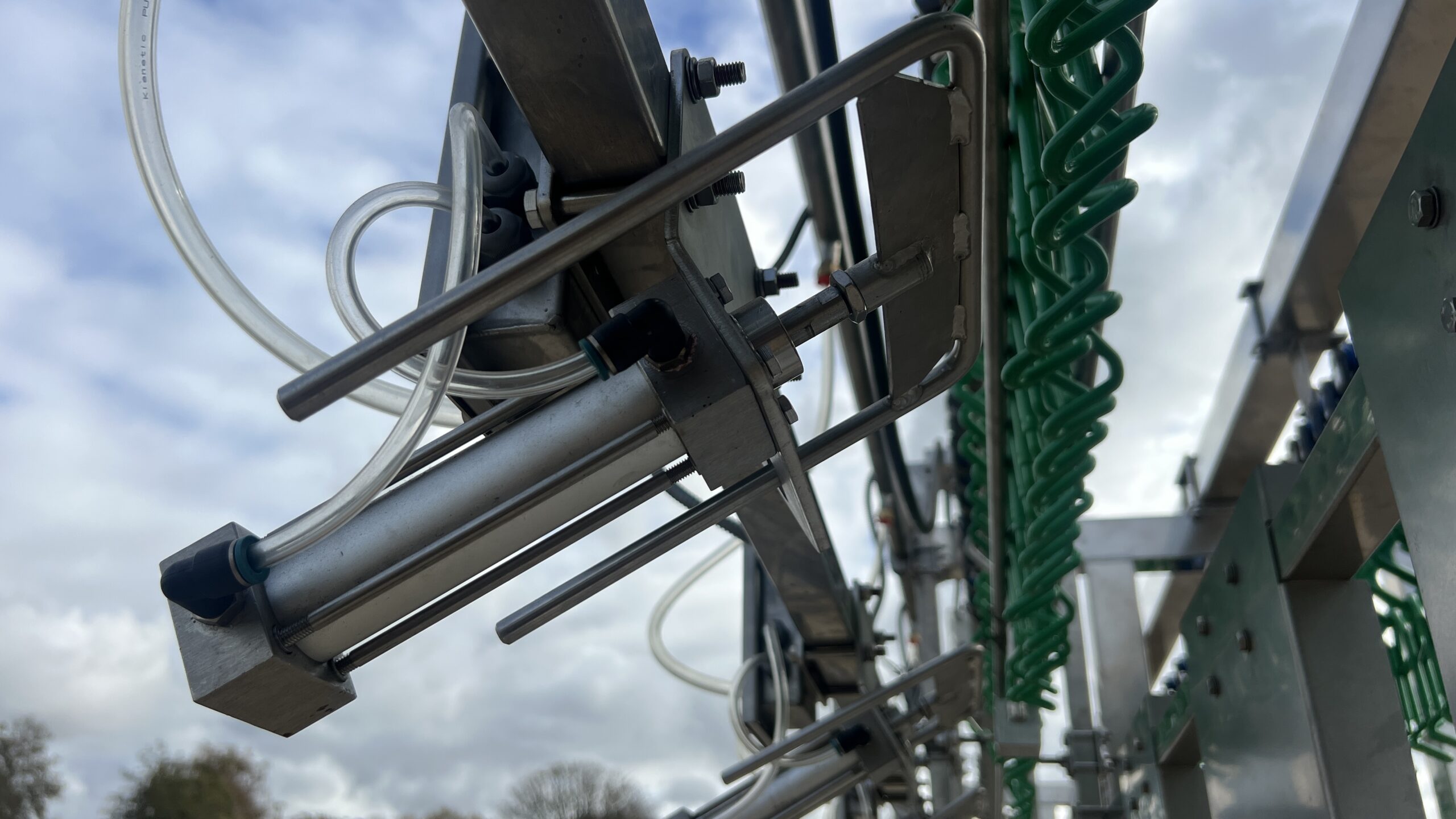

- Solenoid Valves: For dropping stations, 24VDC, 5-meter cable.
Optional Items for Weighing Lines:
- Remote Load Cell Amplifier: Extends load cell cable distance up to 25 meters.
- B-Trigger Sensor: M30, 24VDC, 3-wire, 5-meter cable for A and B-quality selection.
- Passive M12 Distributor Box:
- 10-meter cable option for extended cabinet-to-dropping station distance.
- 15-meter cable option for further extension.
- Receipt Printer (RS232C):
- Panel-mounted, 57mm paper width, stores last 10 production runs.
- Desktop model with 5-meter cable.
- Printer Connection: RS232C connector inside panel without a printer.
- Line Drive Frequency Controller: Available in single-phase and three-phase models for line speed regulation.
If you have additional requirements, please do not hesitate to ask!

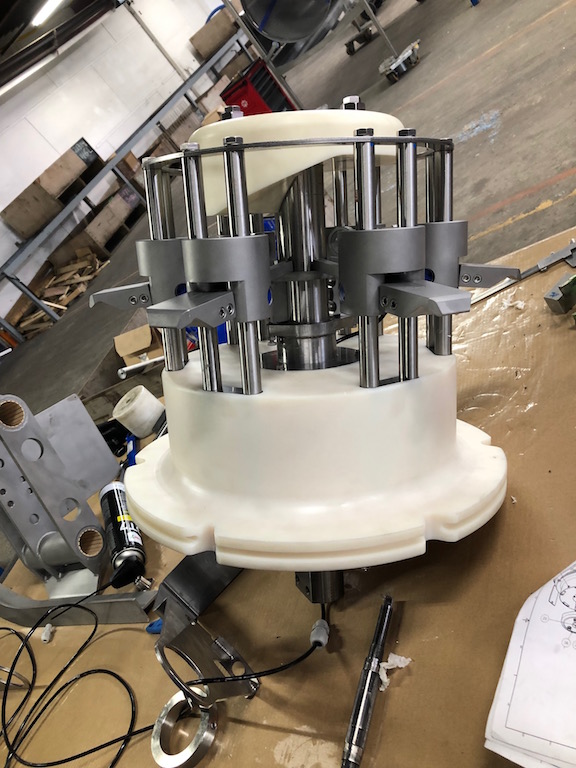

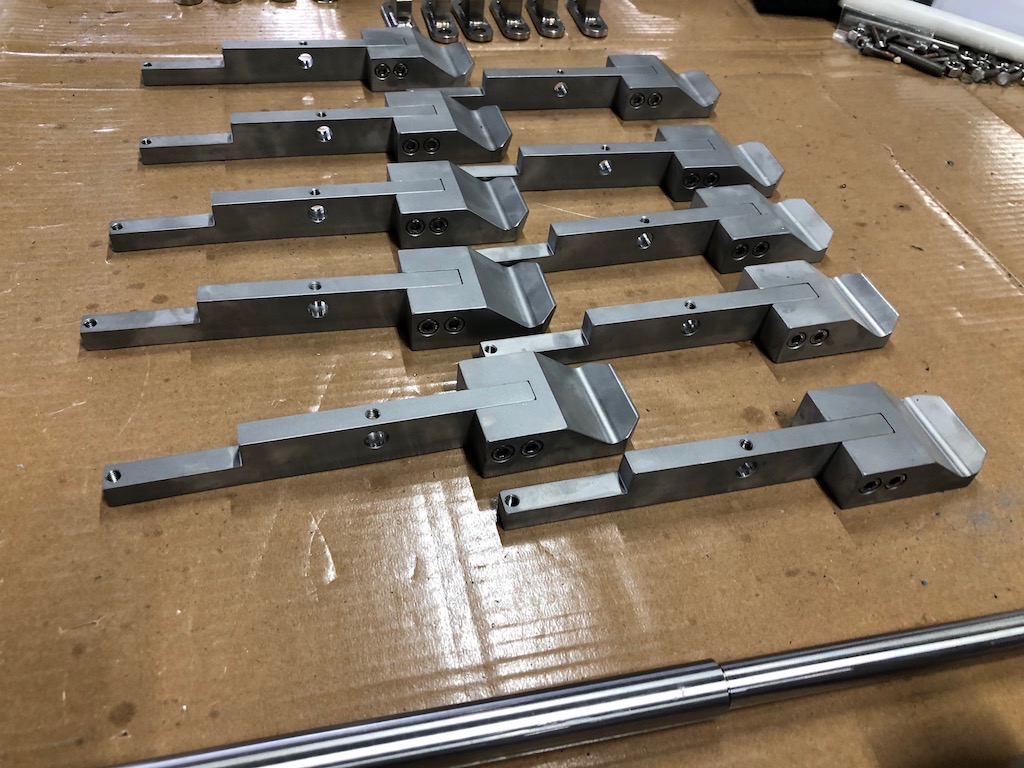

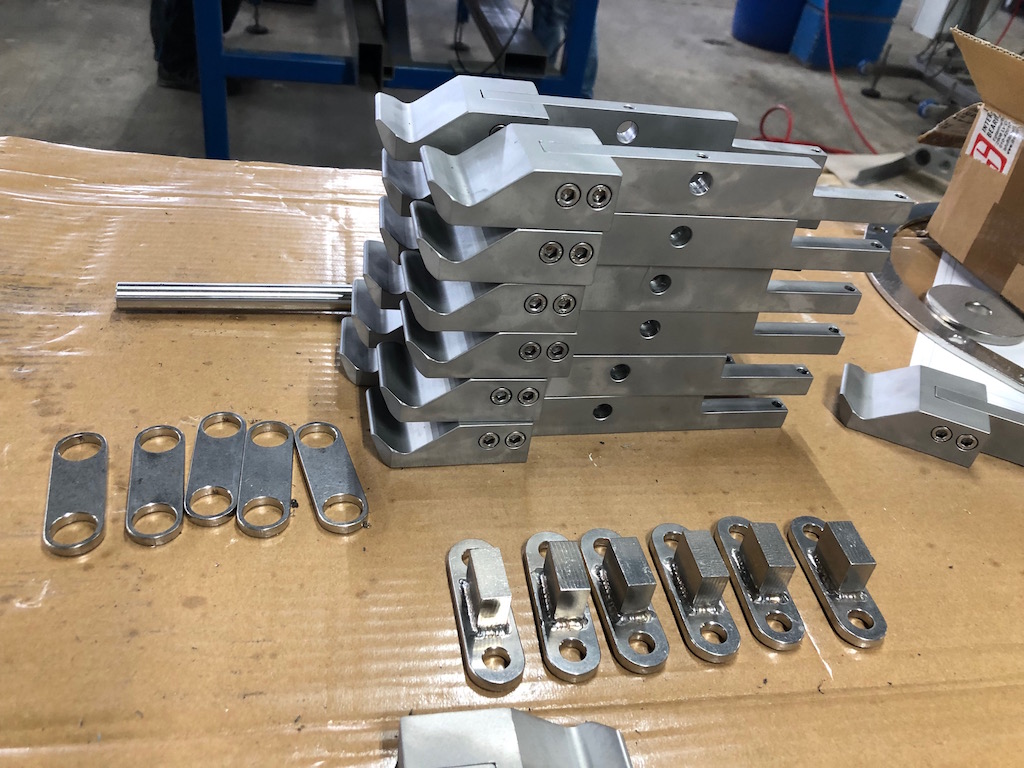

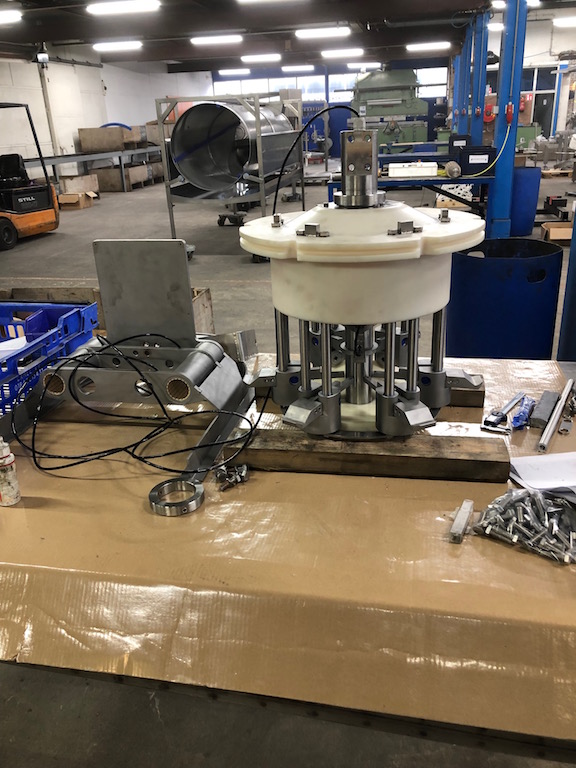

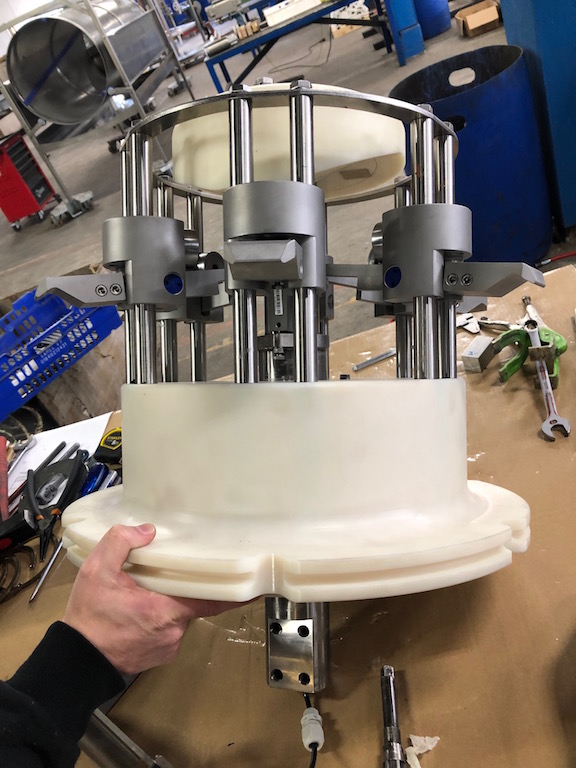

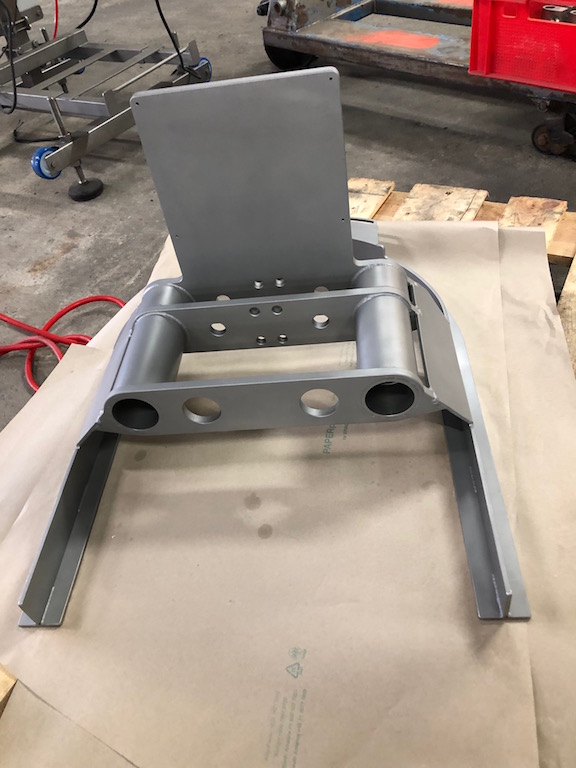

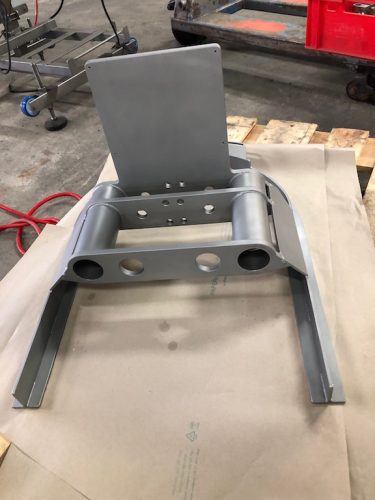

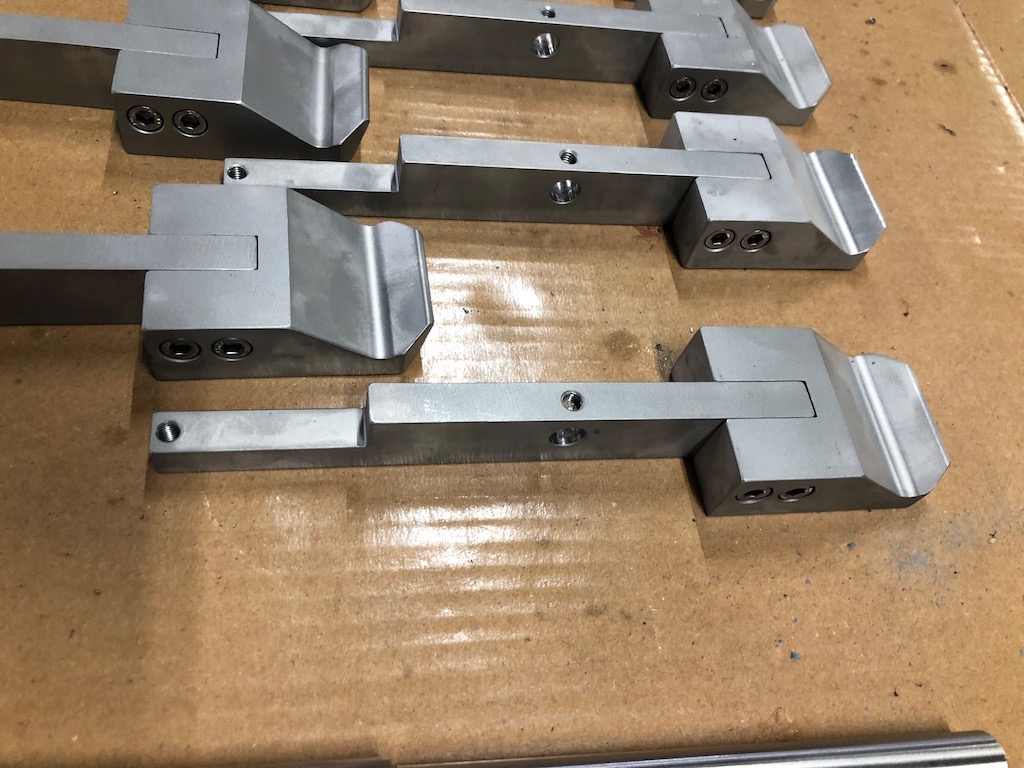

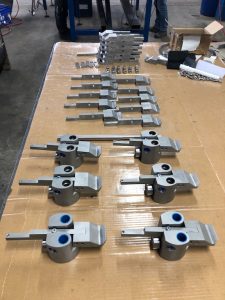

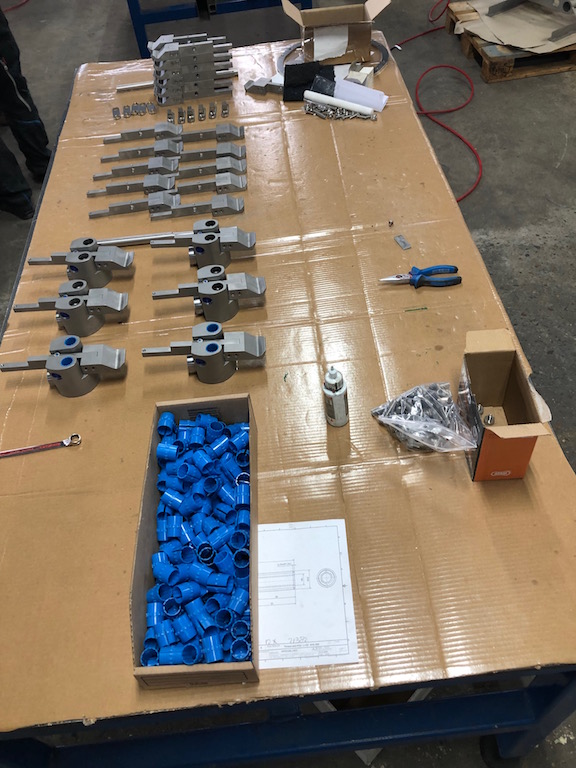

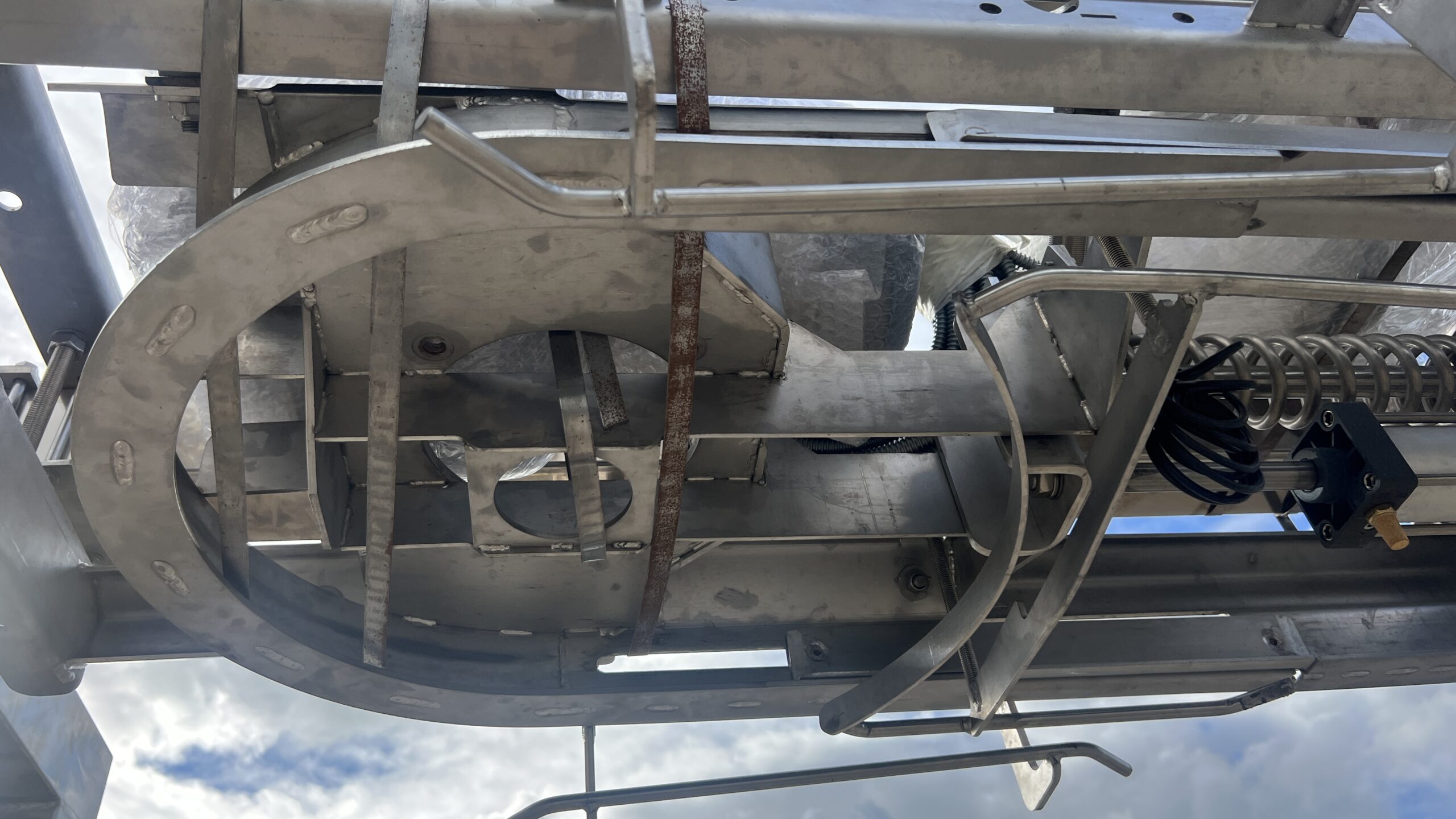

Behind the Scenes: Watch Our Machine Come to Life!
