Stunner

Correct stunning of the birds is essential for humane and efficient killing.
Our water bath stunner is a tried and tested method to tranquillize a bird before the kill cut is made.
Model STN1200 with a capacity of up to 2000 birds per hour or model STN4000 with a capacity of up to 6000 birds per hour.

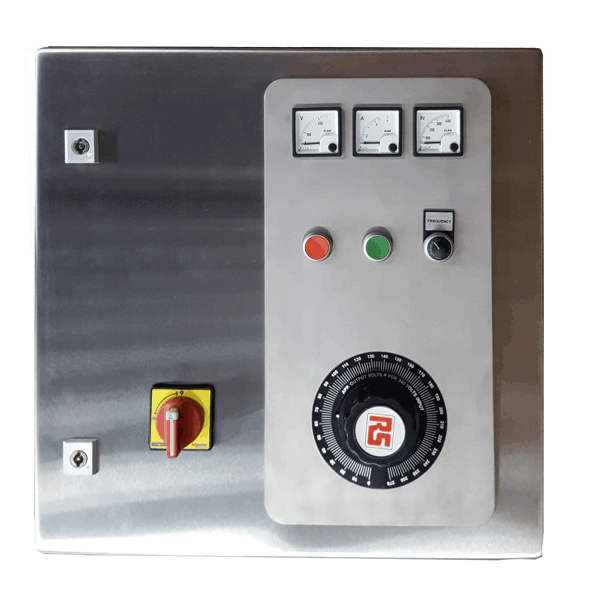

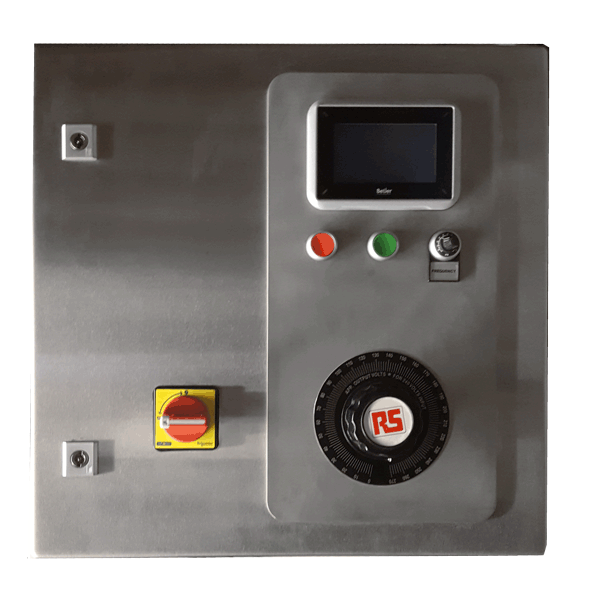

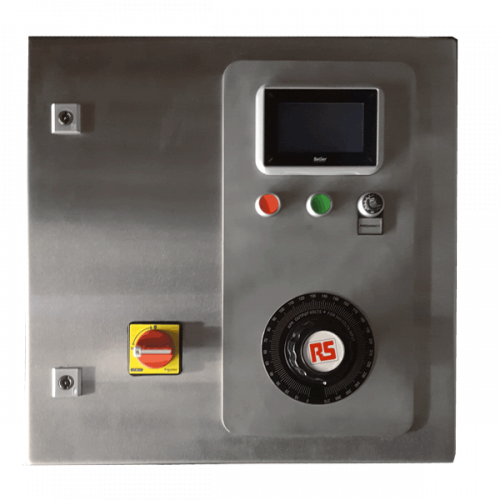

Different control panel available: only voltage adjustable 50/60Hz, voltage and frequency adjustable 50-400Hz, voltage and frequency adjustable 50-400Hz including bird counter.

Select a model:

Options:

Quantity:

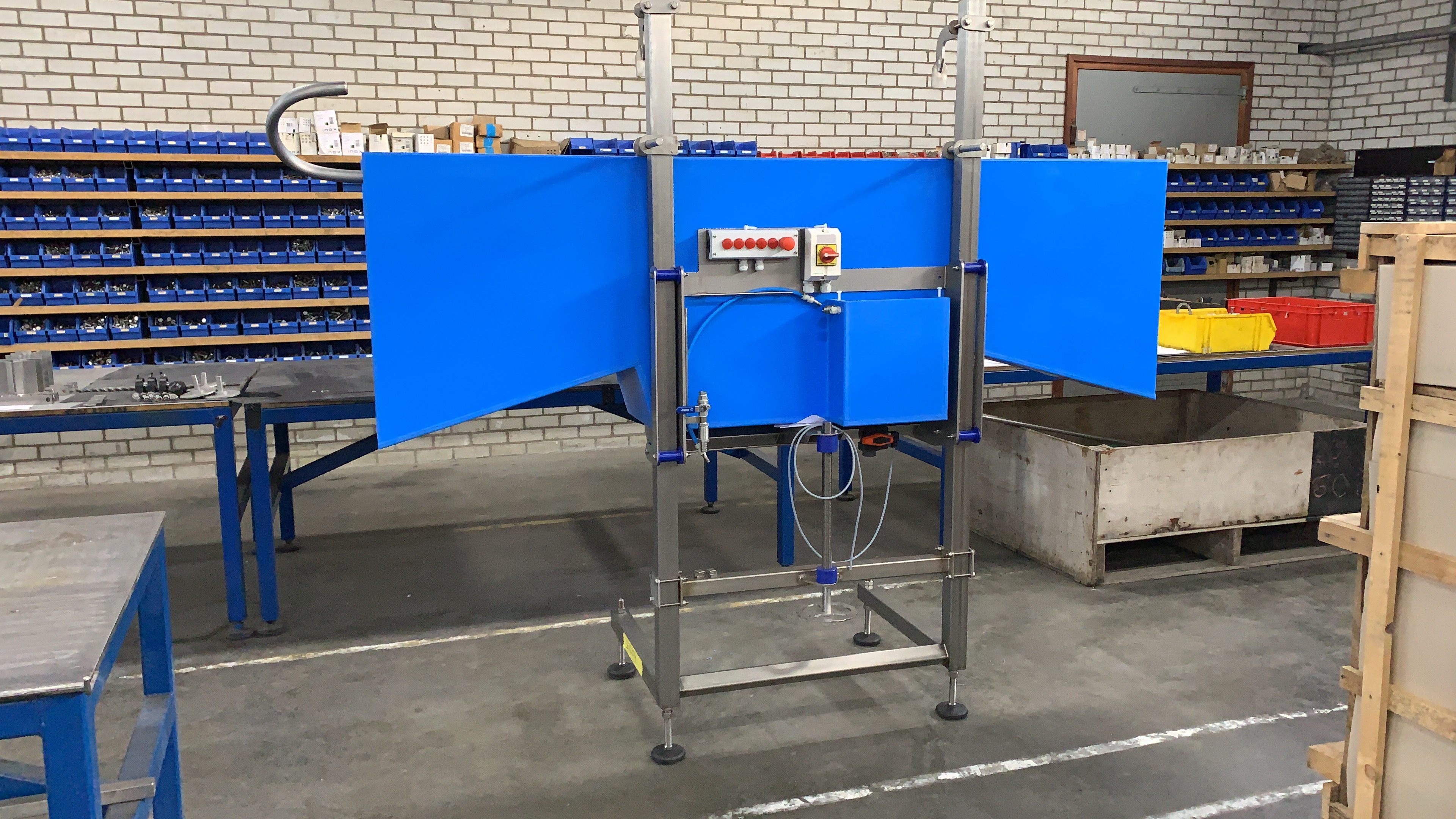

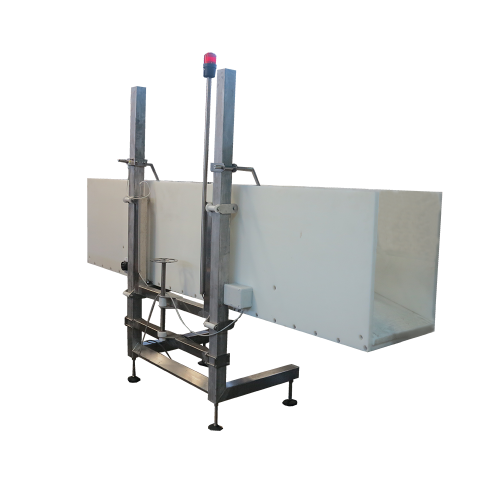

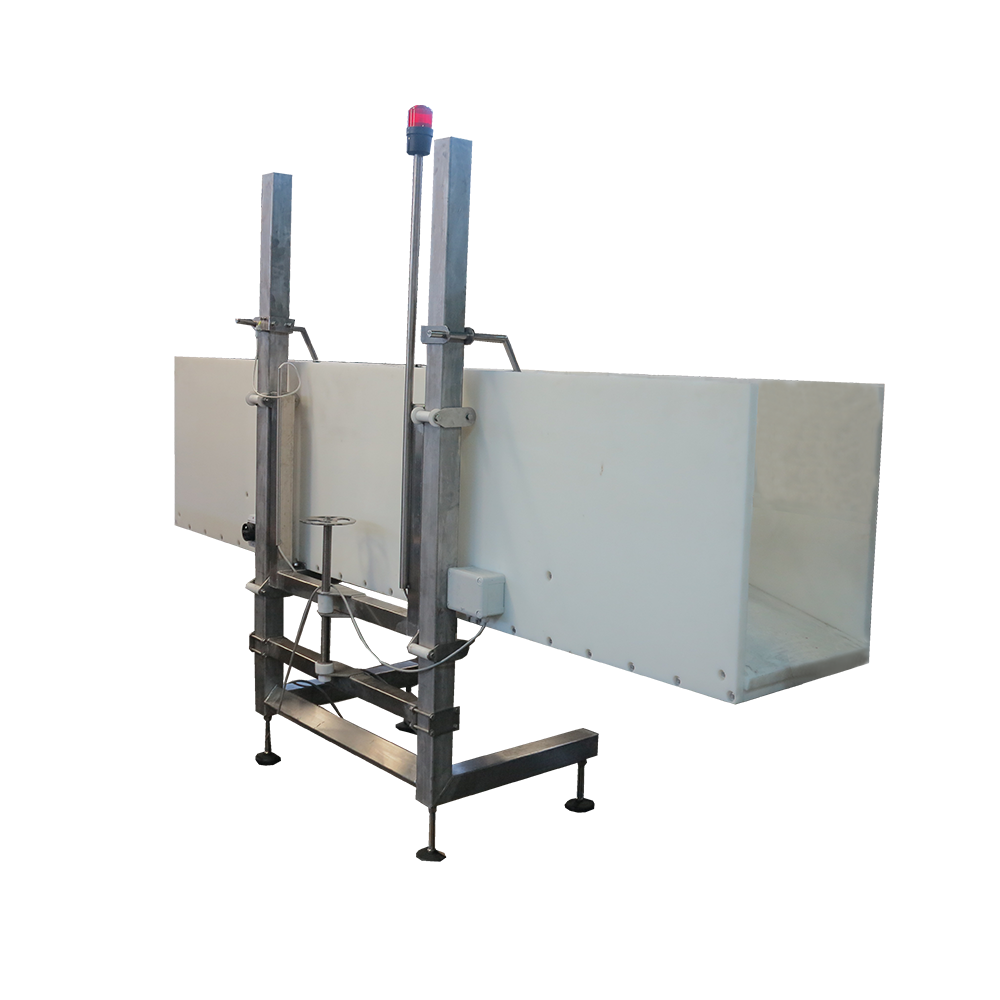

Automatic water bath stunner

Operation according to water bath principle
Stainless steel frame
Cabinet made of polypropylene
Different control panel configurations available
- low frequency (voltage adjustable, 50 or 60 Hertz)
- high frequency (voltage and frequency adjustable, 50 – 400 Hertz)
- high frequency plus logging (voltage and frequency adjustable, 50 – 400 Hertz, including bird counting device which counts and registers each stunner bird with 1 day logging to prove all birds were stunned)
Automatic water level control

021.0004

Capacity	up to 2000 bph
Length	1200 mm
Effective stunning length	600 mm
Width	1200 mm
Height	1500 mm
Weight	300 kg
Installed power	0.5 kW
Water consumption	0.05 - 0.11 L/bird (head or breast immersed)

021.0005

Capacity	up to 4000 bph
Length	4000 mm
Effective stunning length	2000 mm
Width	1200 mm
Height	1500 mm
Weight	400 kg
Installed power	0.5 kW
Water consumption	0.05 - 0.11 L/bird (head or breast immersed)
