Final Inspection Machine

  • Automatic Final Inspection mMachine is designed to clean the abdominal cavity of each carcass by means of vacuum
  • Any remaining parts, such as lungs and other small residual tissues, are removed by a vacuum-powered suction head
  • Cost-effective automation to increase productivity and reduce staff
  • Capacity from 2000 to 6000 birds per hour depending on configuration/model

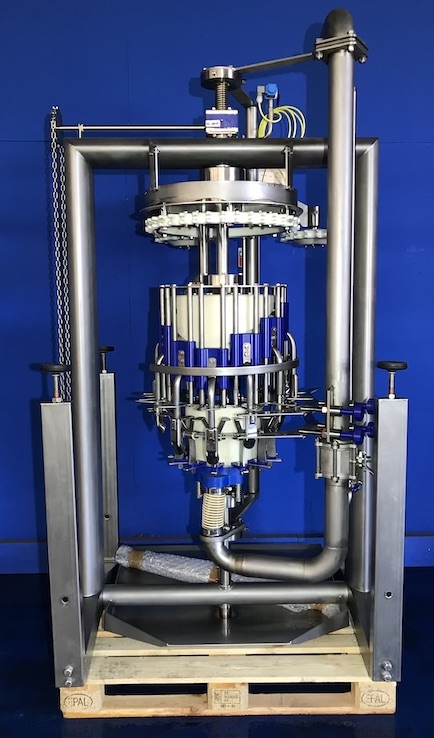

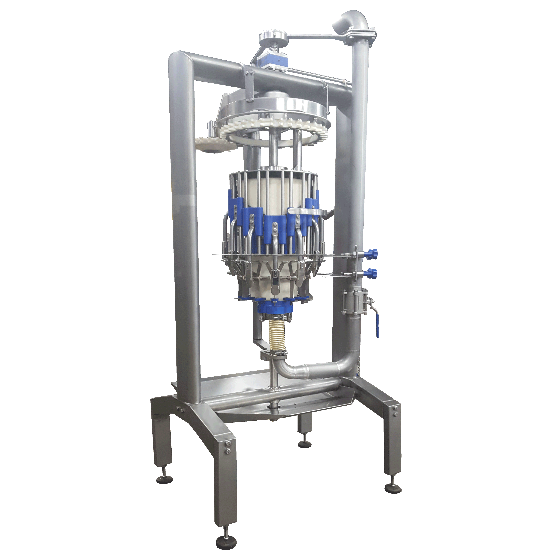

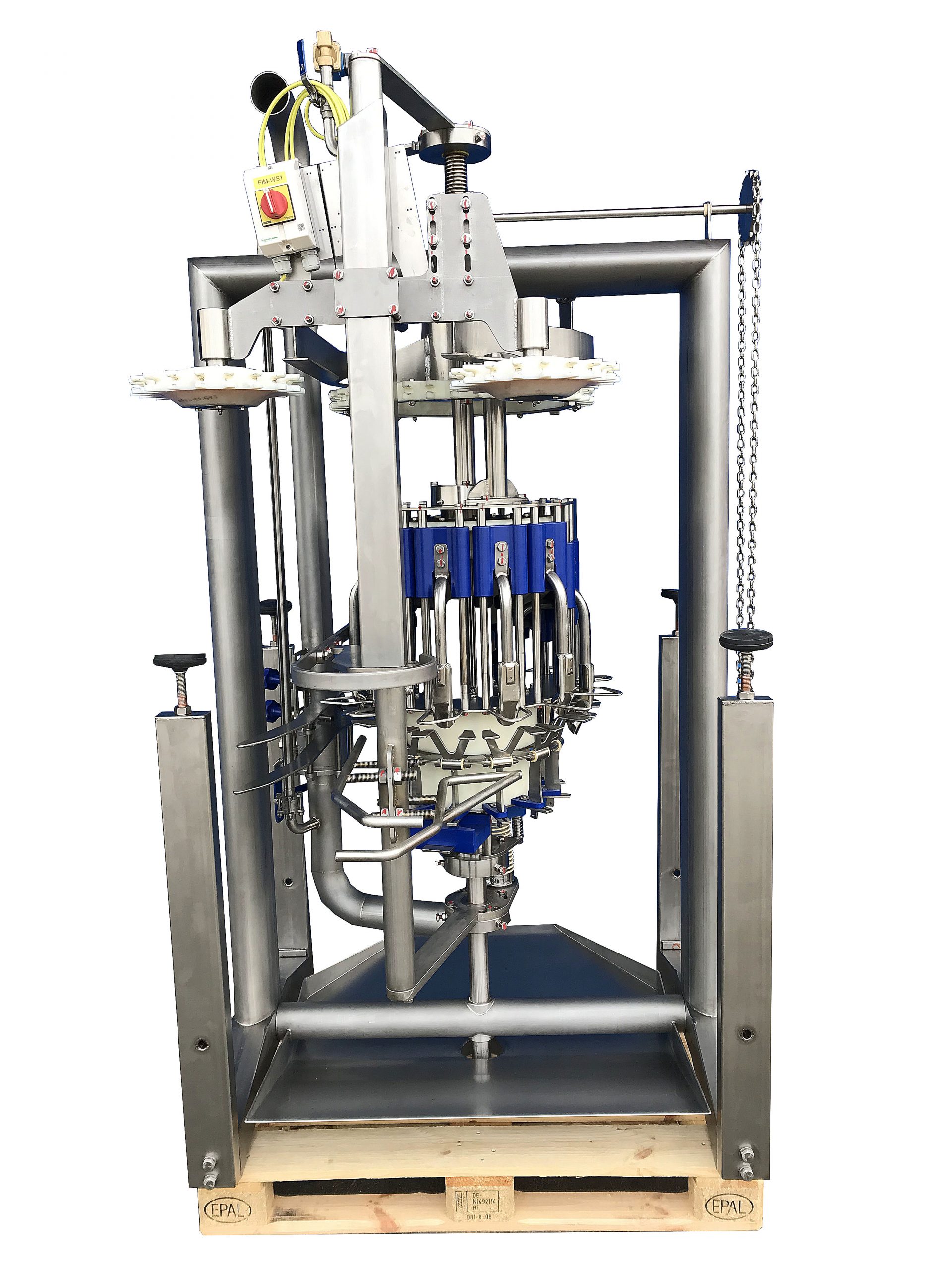

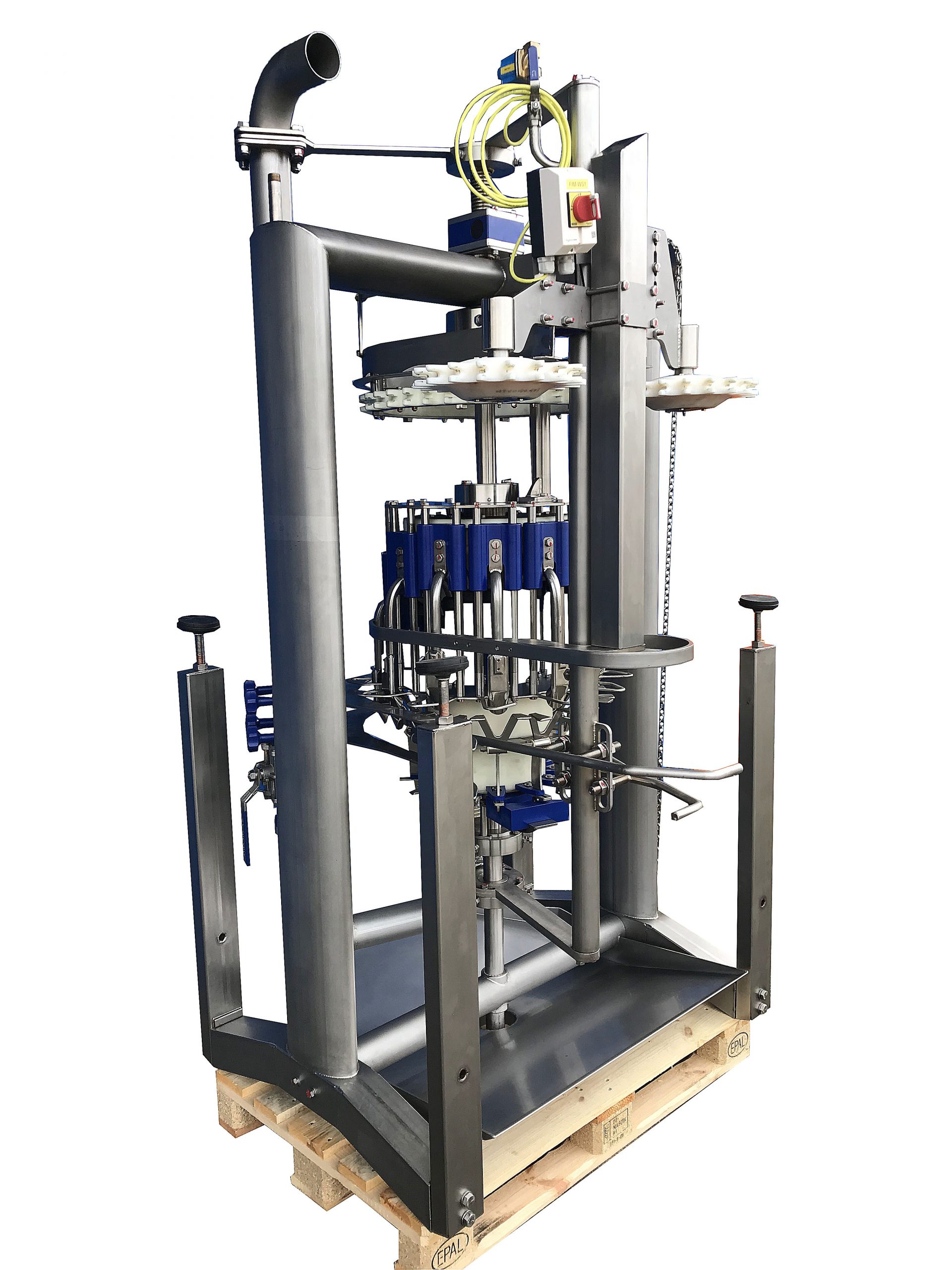

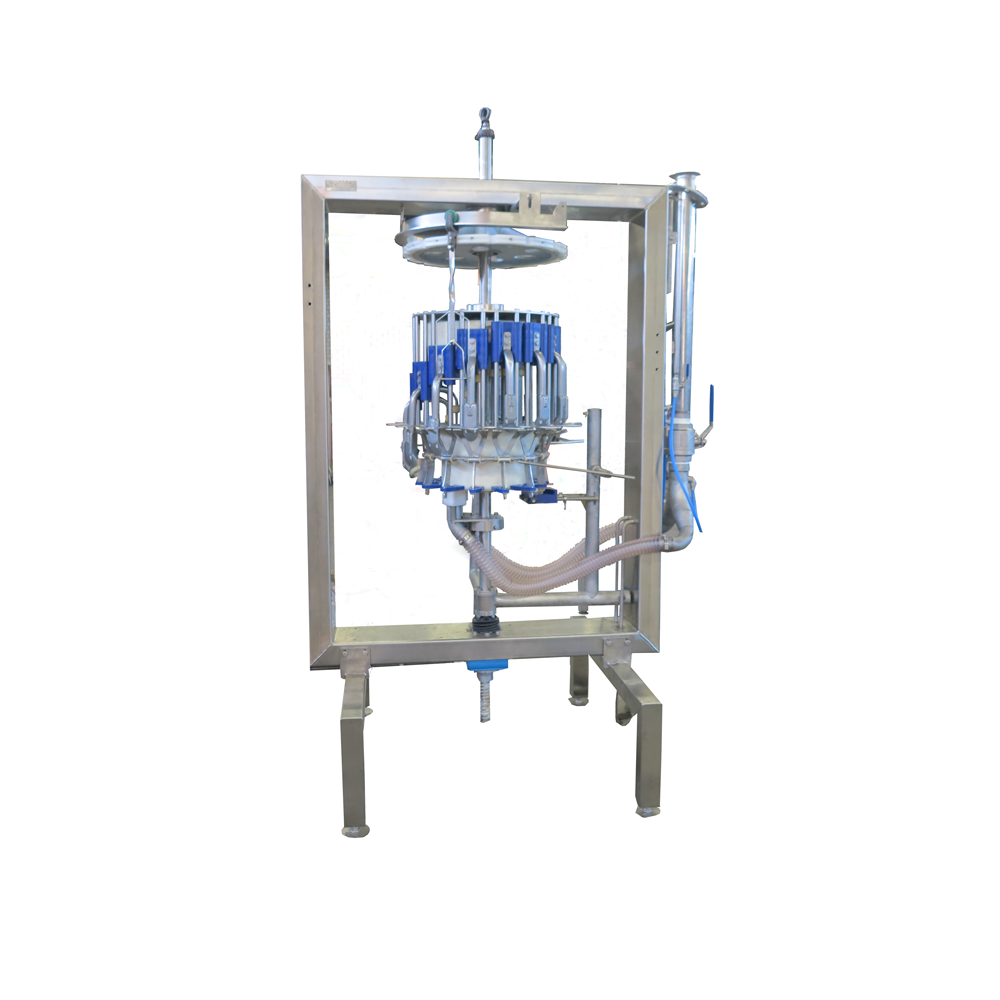

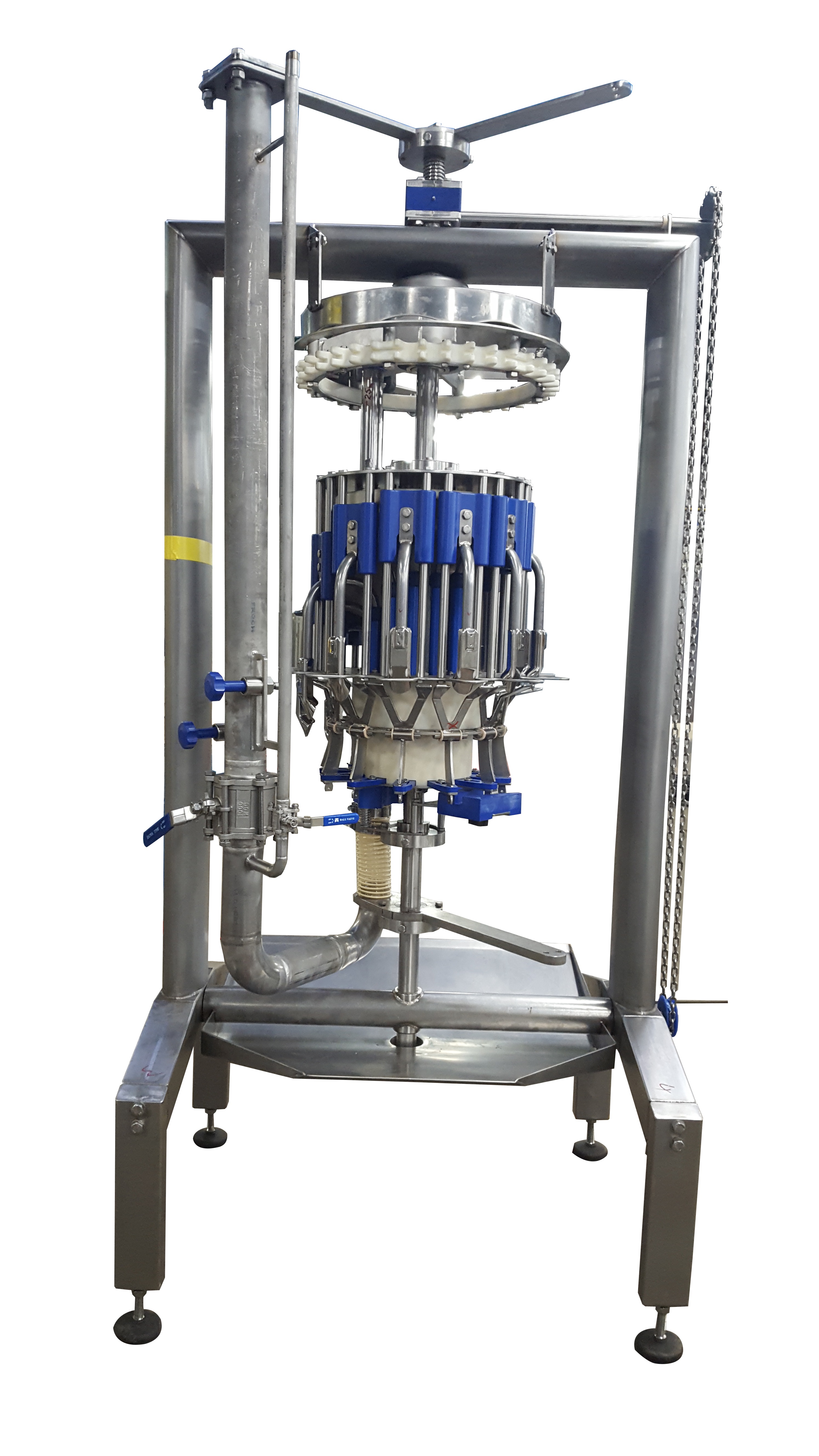

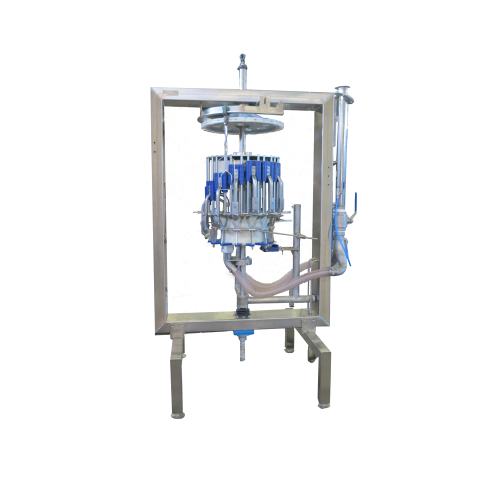

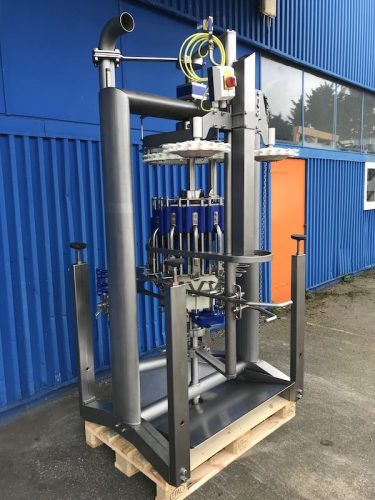

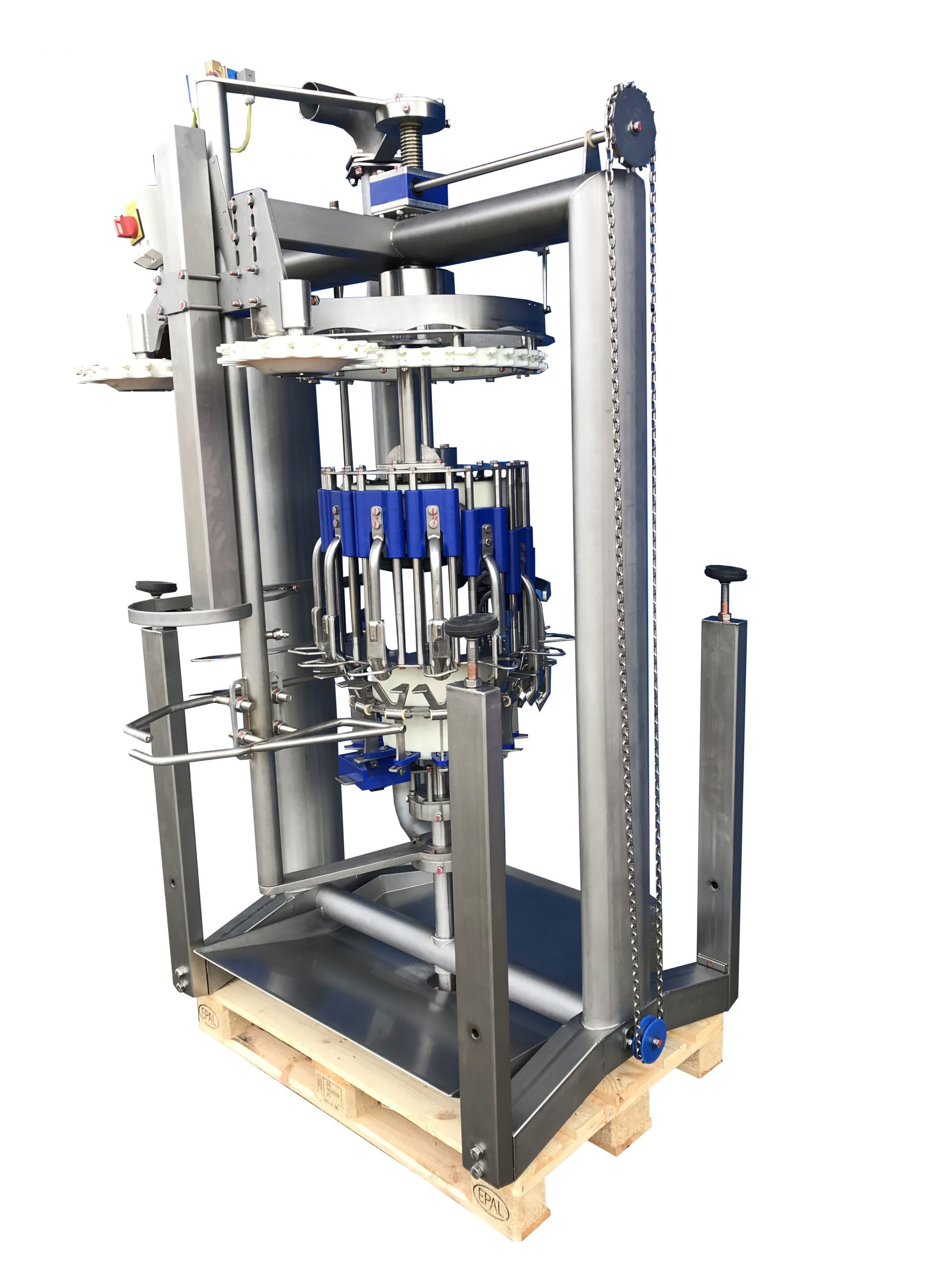

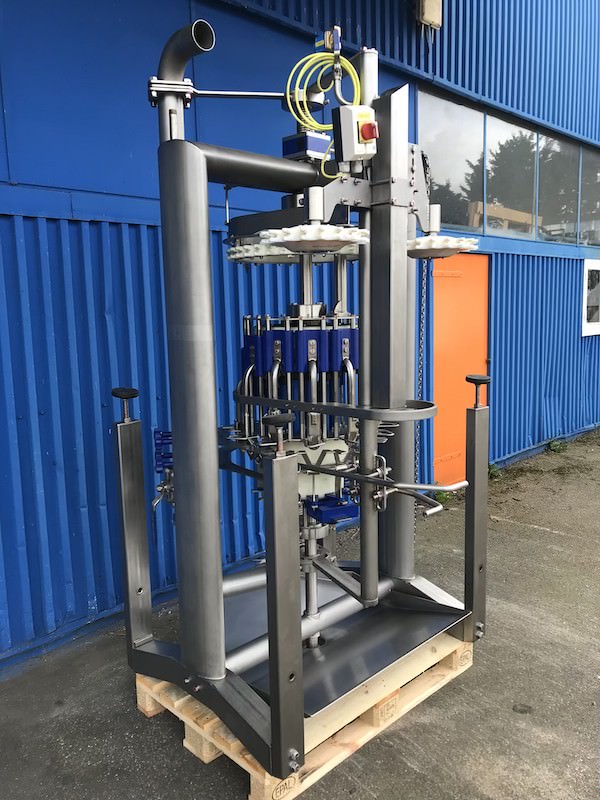

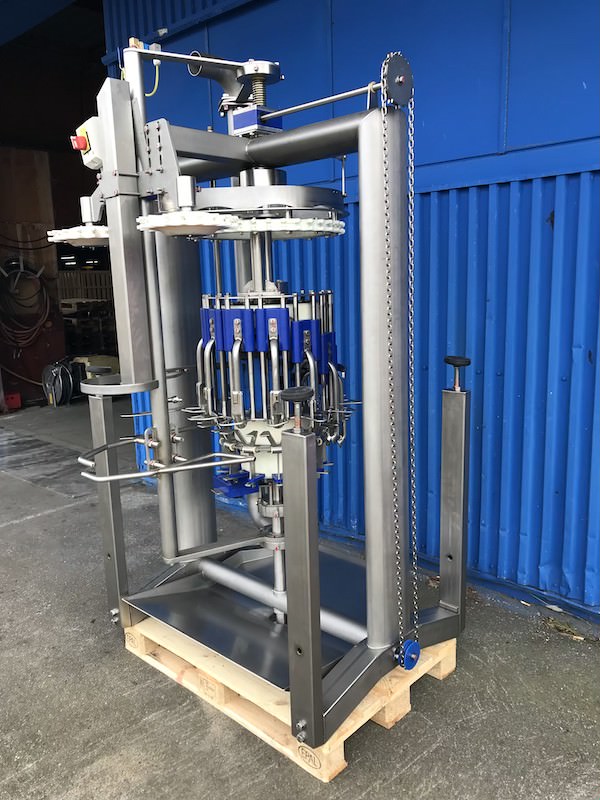

The final inspection machine is designed to clean the abdominal cavity of each carcass. Any remaining parts, such as lungs and other small residual tissues, are removed by a vacuum-powered suction head. The rotating machine holds up to 20 units. As each bird is conveyed through the machine, its suction units enter the birds’ cavity. Once the bottom is reached, the vacuum system activates and removes the birds’ lungs and other loose materials. After this task has been completed, vacuum is turned off and the units leave the carcass.

  • Driven by an overhead conveyor
  • Quick removal of remaining impurities in the carcass by vacuum
  • Machine is easy to maintain
  • Reduced noise level due to special air valve
  • Quick and easy cleaning
  • Improving shelf life: machine to be placed after the inside outside washer
  • Made of stainless steel and other non corrosive materials
  • Supplied with receiving bin with central drain
  • High quality design
Capacity3000 birds per hour
Live bird weight900-3200 g (max weight variance in one flock is +/- 150g in case of live weight 700 - 1200 grams and +/- 300g in case of live weight 1200 - 1700 grams)
Number of units7
Shackle pitch12 inch
Length1600 mm
Width1300 mm
Height2000 mm
Weight600 kg
Water connection1/2" BSP
Water consumption0.5 m3/h

Capacity6000 birds per hour
Live bird weight900-3200 g (max weight variance in one flock is +/- 150g in case of live weight 700 - 1200 grams and +/- 300g in case of live weight 1200 - 1700 grams)
Number of units14
Shackle pitch6
Length1600 mm
Width1300 mm
Height2000 mm
Weight600 kg
Water connection1/2" BSP
Water consumption0.5 m3/h

Capacity6500 birds per hour
Live bird weight900-3200 g (max weight variance in one flock is +/- 150g in case of live weight 700 - 1200 grams and +/- 300g in case of live weight 1200 - 1700 grams)
Number of units15
Shackle pitch8 inch
Length1600 mm
Width2100 mm
Height2600 mm
Weight600 kg
Water connection1/2" BSP
Water consumption0.5 m3/h
